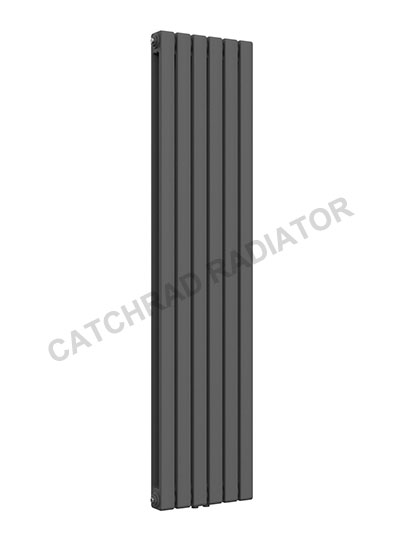

BF Series

BF Series

Product Name Height
mm		 Width
mm		 Thickness
mm		 Pipe Centres
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -

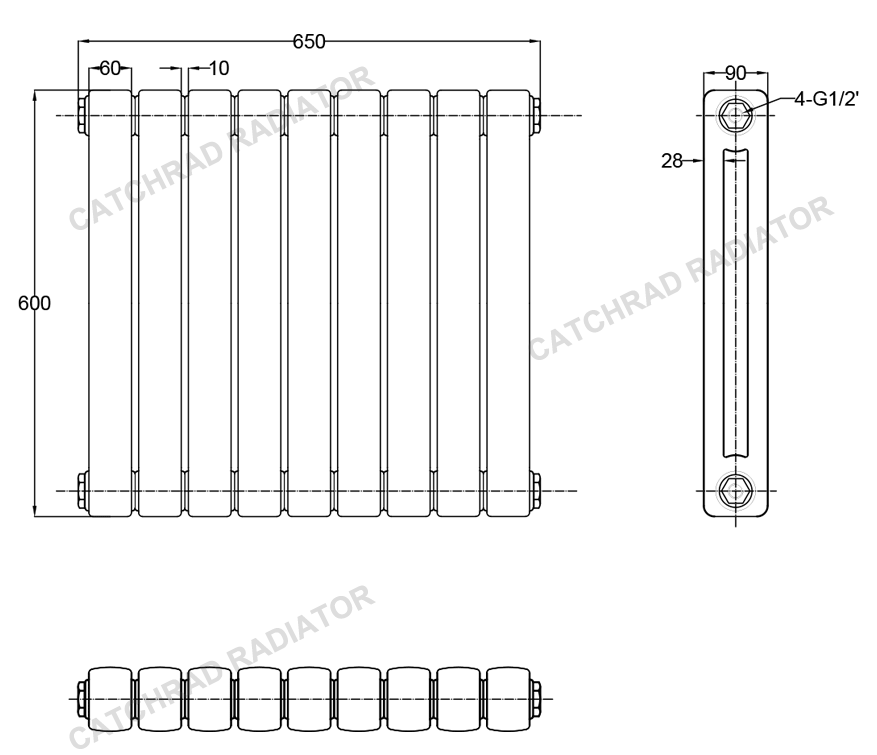

BF12-9/600 600 650 90 525 66 111 9
BF12-17/600 600 1210 90 525 66 111 17
BF12-6/1800 1800 440 90 1725 66 111 6
BF12-8/1800 1800 580 90 1725 66 111 8
