aKD11 Series

aKD11 Series

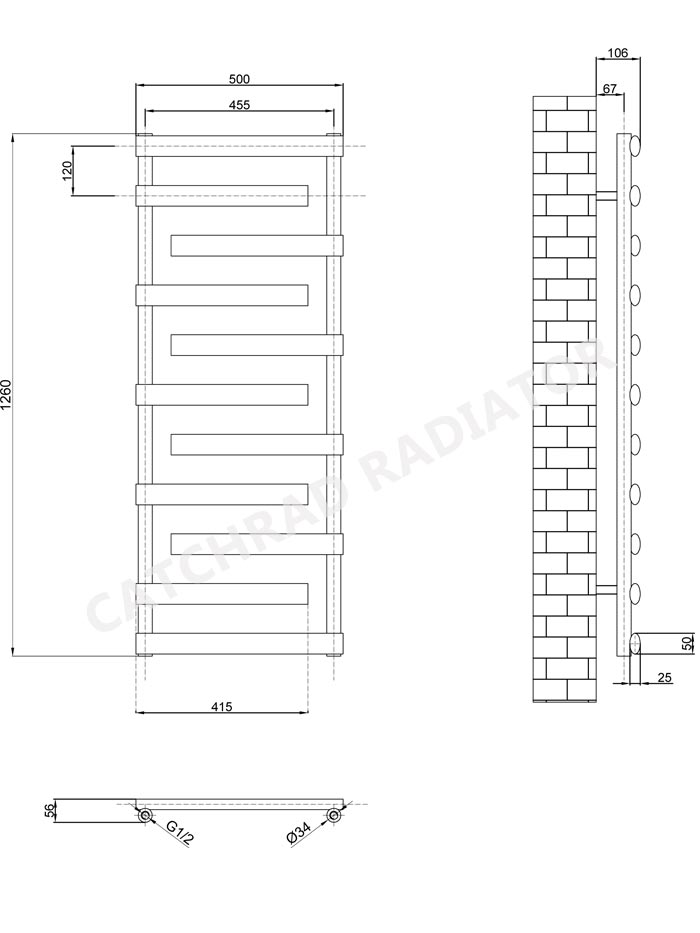

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
aKD11-8/500 900 500 56 455 67 106 8
aKD11-11/500 1260 500 56 455 67 106 11
aKD11-13/500 1500 500 56 455 67 106 13
aKD11-15/500 1740 500 56 455 67 106 15
aKD11-8/600 900 600 56 555 67 106 8
aKD11-11/600 1260 600 56 555 67 106 11
aKD11-13/600 1500 600 56 555 67 106 13
aKD11-15/600 1740 600 56 555 67 106 15
