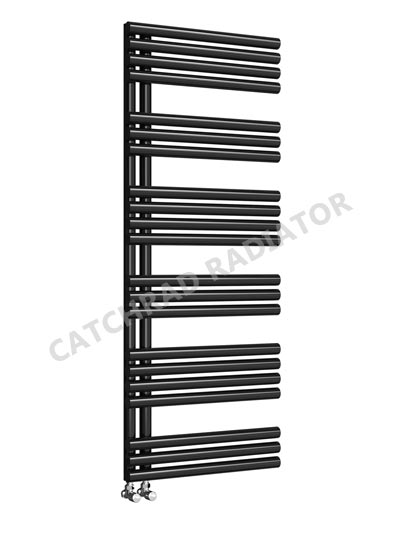

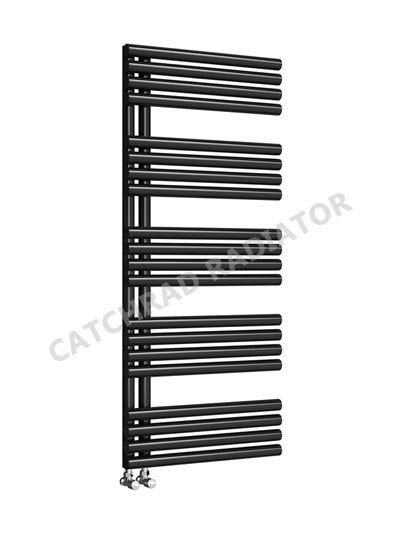

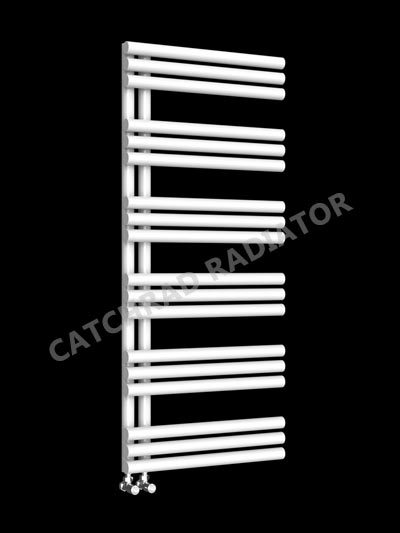

zZFD Series
zZFD Series

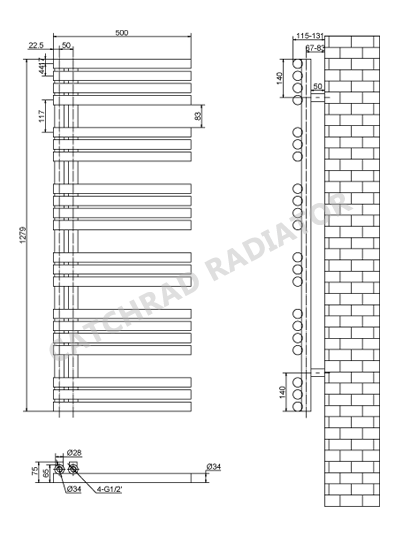

| Product Name | Height mm |
Width mm |
Pipe Centres mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|
| zZFD11-12(3+3) | 737 | 400/500/600 | 50 | 67 | 115 | 12 |
| zZFD11-15(3+3) | 942 | 400/500/600 | 50 | 67 | 115 | 15 |
| zZFD11-18(3+3) | 1147 | 400/500/600 | 50 | 67 | 115 | 18 |
| zZFD11-21(3+3) | 1352 | 400/500/600 | 50 | 67 | 115 | 21 |
| zZFD11-24(3+3) | 1557 | 400/500/600 | 50 | 67 | 115 | 24 |
| zZFD11-16(4+4) | 913 | 400/500/600 | 50 | 67 | 115 | 16 |
| zZFD11-20(4+4) | 1162 | 400/500/600 | 50 | 67 | 115 | 20 |
| zZFD11-24(4+4) | 1411 | 400/500/600 | 50 | 67 | 115 | 24 |
| zZFD11-28(4+4) | 1660 | 400/500/600 | 50 | 67 | 115 | 28 |
| zZFD11-18(4+3) | 1074 | 400/500/600 | 50 | 67 | 115 | 18 |
| zZFD11-21(4+3) | 1279 | 400/500/600 | 50 | 67 | 115 | 21 |
| zZFD11-25(4+3) | 1528 | 400/500/600 | 50 | 67 | 115 | 25 |
| zZFD11-28(4+3) | 1733 | 400/500/600 | 50 | 67 | 115 | 28 |
