aFD11 Series
aFD11 Series

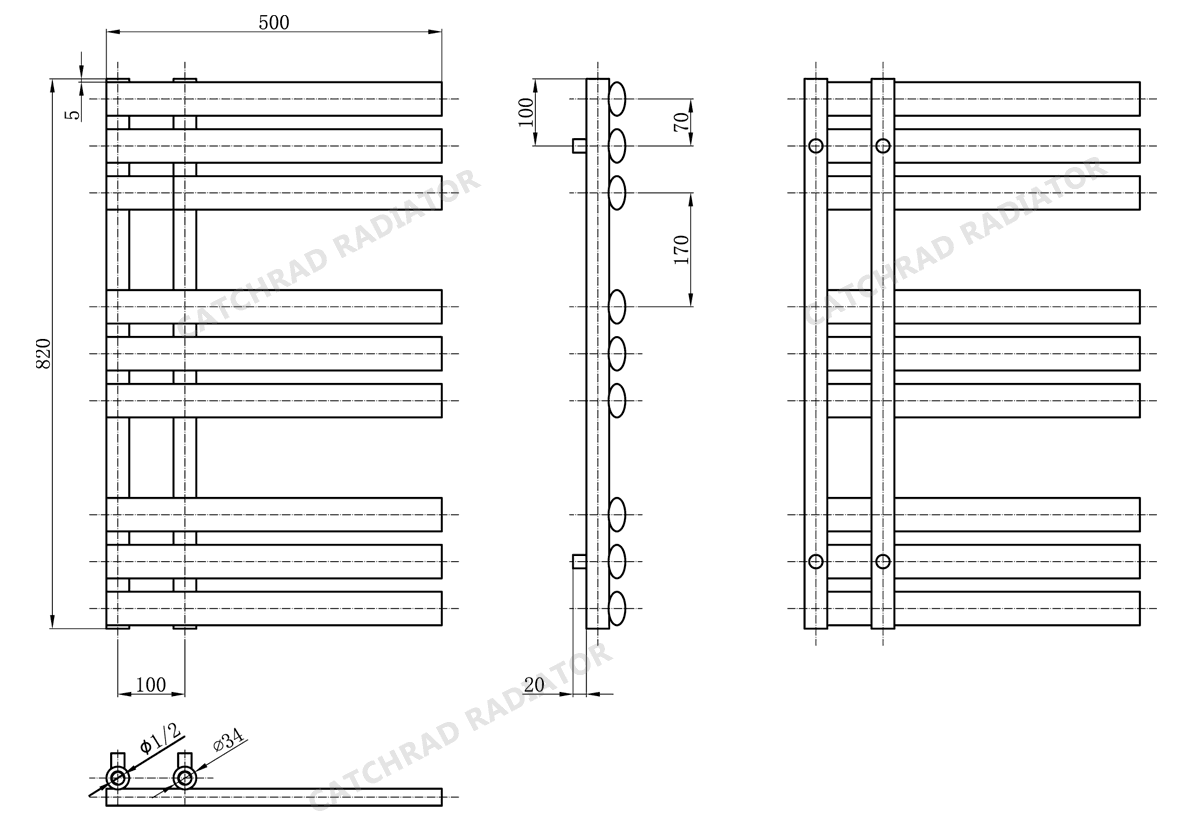

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| aFD11-9/500 | 820 | 500 | 56 | 455 | 67 | 106 | 9 |
| aFD11-12/500 | 1130 | 500 | 56 | 455 | 67 | 106 | 12 |
| aFD11-15/500 | 1420 | 500 | 56 | 455 | 67 | 106 | 15 |
