wD11 Series

wD11 Series

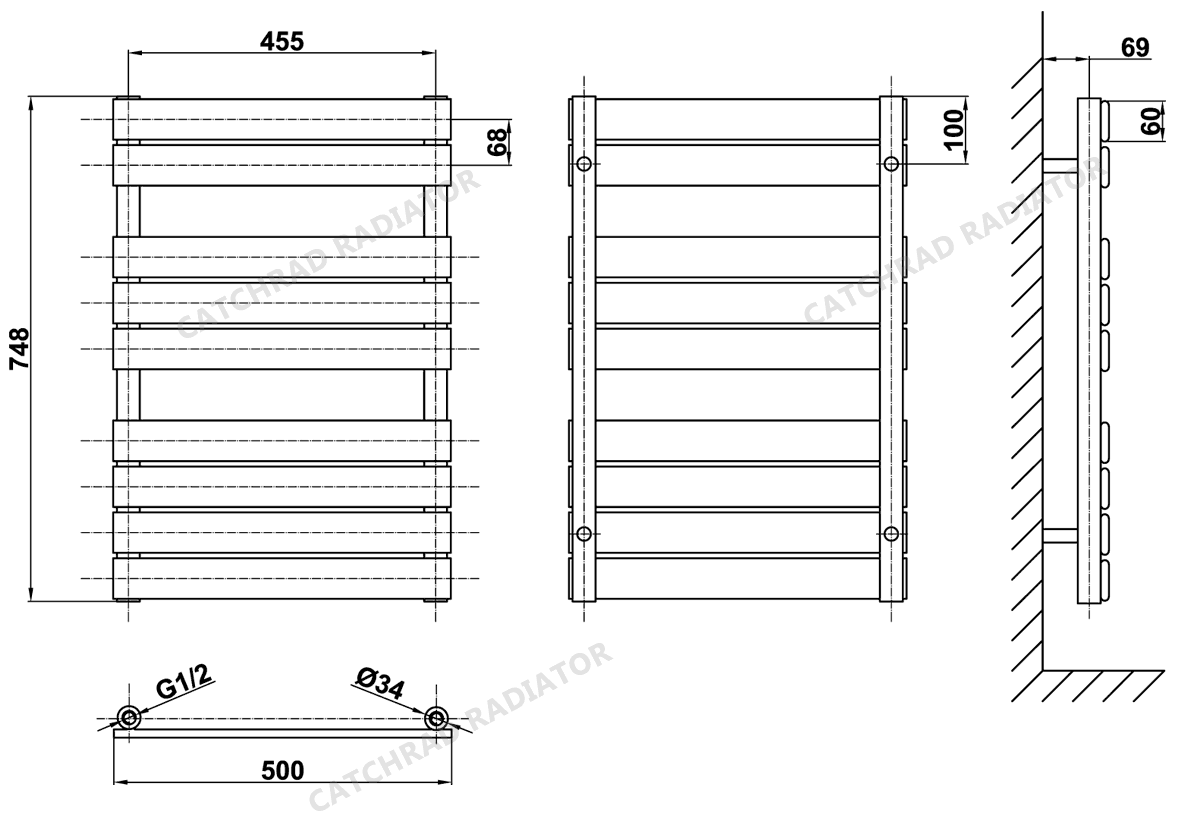

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
wD11-9/500 748 500 46 455 67 96 9
wD11-12/500 952 500 46 455 67 96 12
wD11-16/500 1224 500 46 455 67 96 16
wD11-9/600 748 600 46 555 67 96 9
wD11-12/600 952 600 46 555 67 96 12
wD11-16/600 1224 600 46 555 67 96 16
