aLD11 Series
aLD11 Series

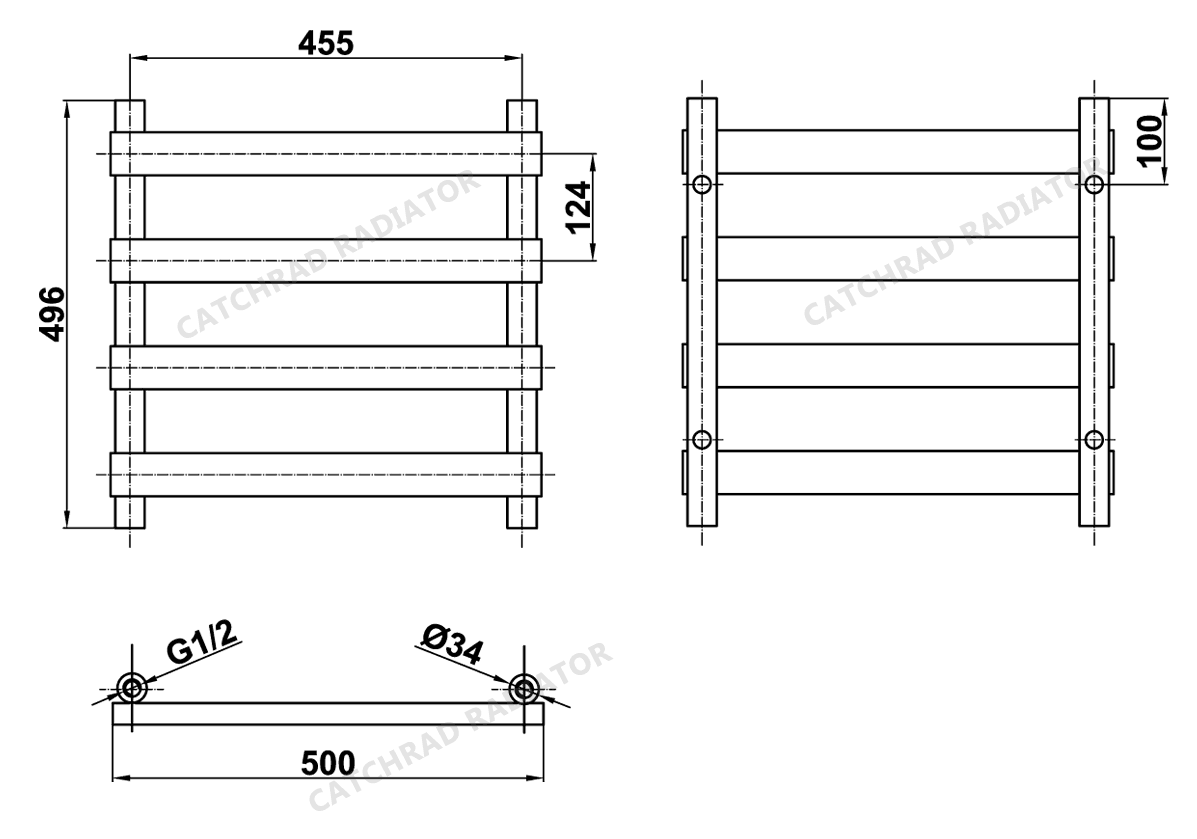

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| aLD11-4/500 | 496 | 500 | 56 | 455 | 67 | 106 | 4 |
| aLD11-8/500 | 992 | 500 | 56 | 455 | 67 | 106 | 8 |
| aLD11-12/500 | 1488 | 500 | 56 | 455 | 67 | 106 | 12 |
