EwLFE Series

EwLFE Series

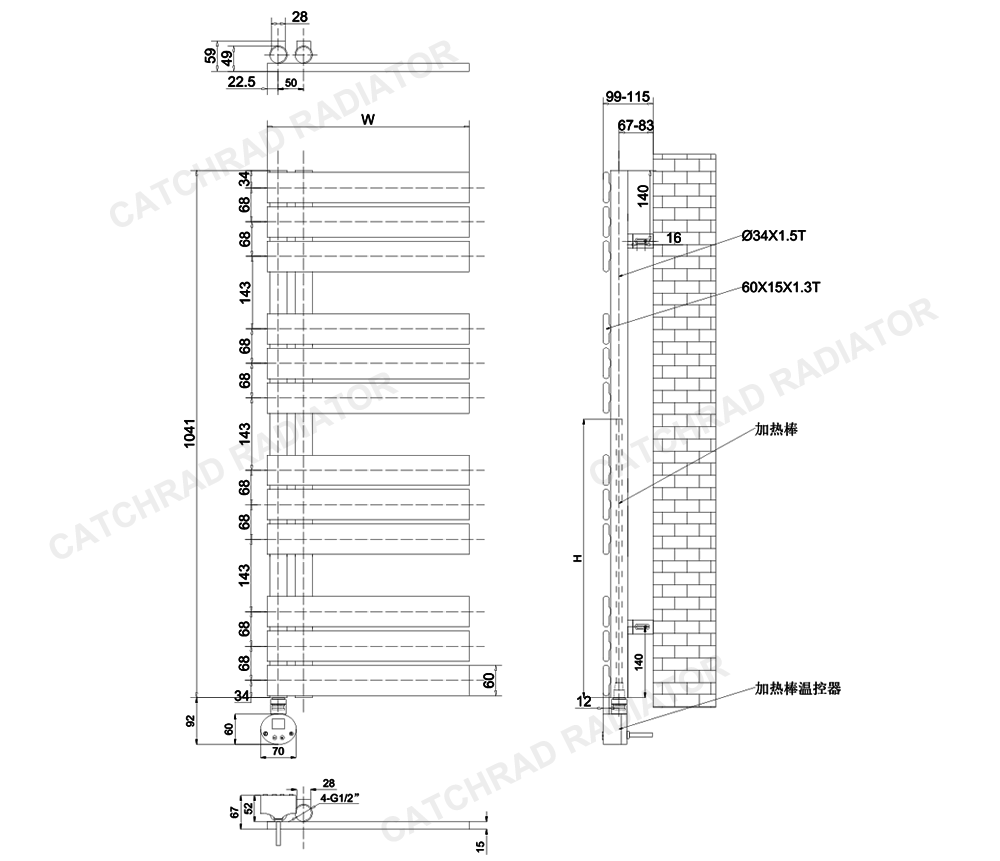

Product Name Height
mm		 Width
mm		 Thickness
mm		 Pipe Centres
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
EwLFE11-10/600 600 899 59 50 67 99 10
EwLFE11-13/400 400 1176 59 50 67 99 13
EwLFE11-15/500 500 1385 59 50 67 99 15
EwLFE11-9/400 400 762 59 50 67 99 9
EwLFE11-12/600 600 1041 59 50 67 99 12
EwLFE11-18/500 500 1599 59 50 67 99 18
