KD11 Series
KD11 Series

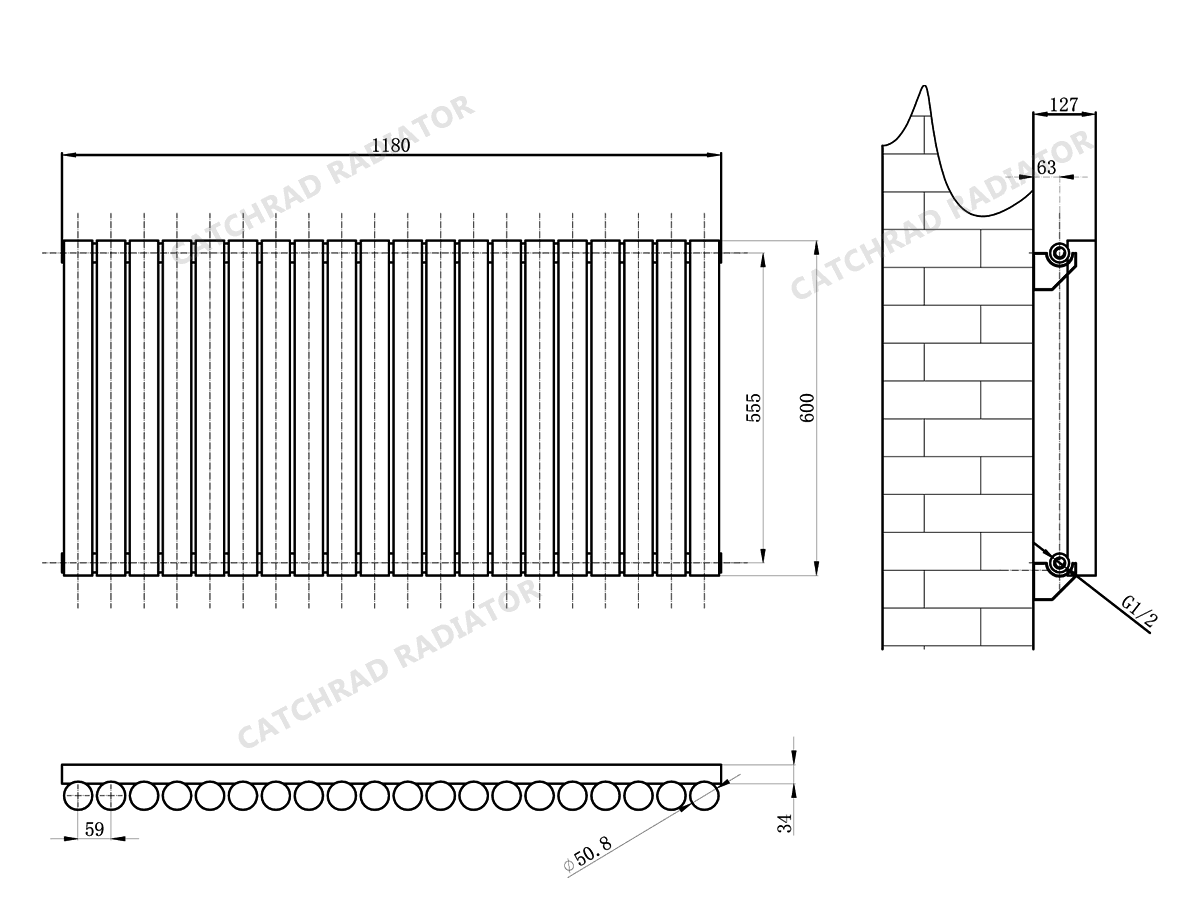

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| KD11-8/600 | 600 | 472 | 81 | 555 | 63 | 127 | 8 |
| KD11-10/600 | 600 | 590 | 81 | 555 | 63 | 127 | 10 |
| KD11-12/600 | 600 | 708 | 81 | 555 | 63 | 127 | 12 |
| KD11-14/600 | 600 | 826 | 81 | 555 | 63 | 127 | 14 |
| KD11-16/600 | 600 | 944 | 81 | 555 | 63 | 127 | 16 |
| KD11-18/600 | 600 | 1062 | 81 | 555 | 63 | 127 | 18 |
| KD11-20/600 | 600 | 1180 | 81 | 555 | 63 | 127 | 20 |
