AR12 Series

AR12 Series

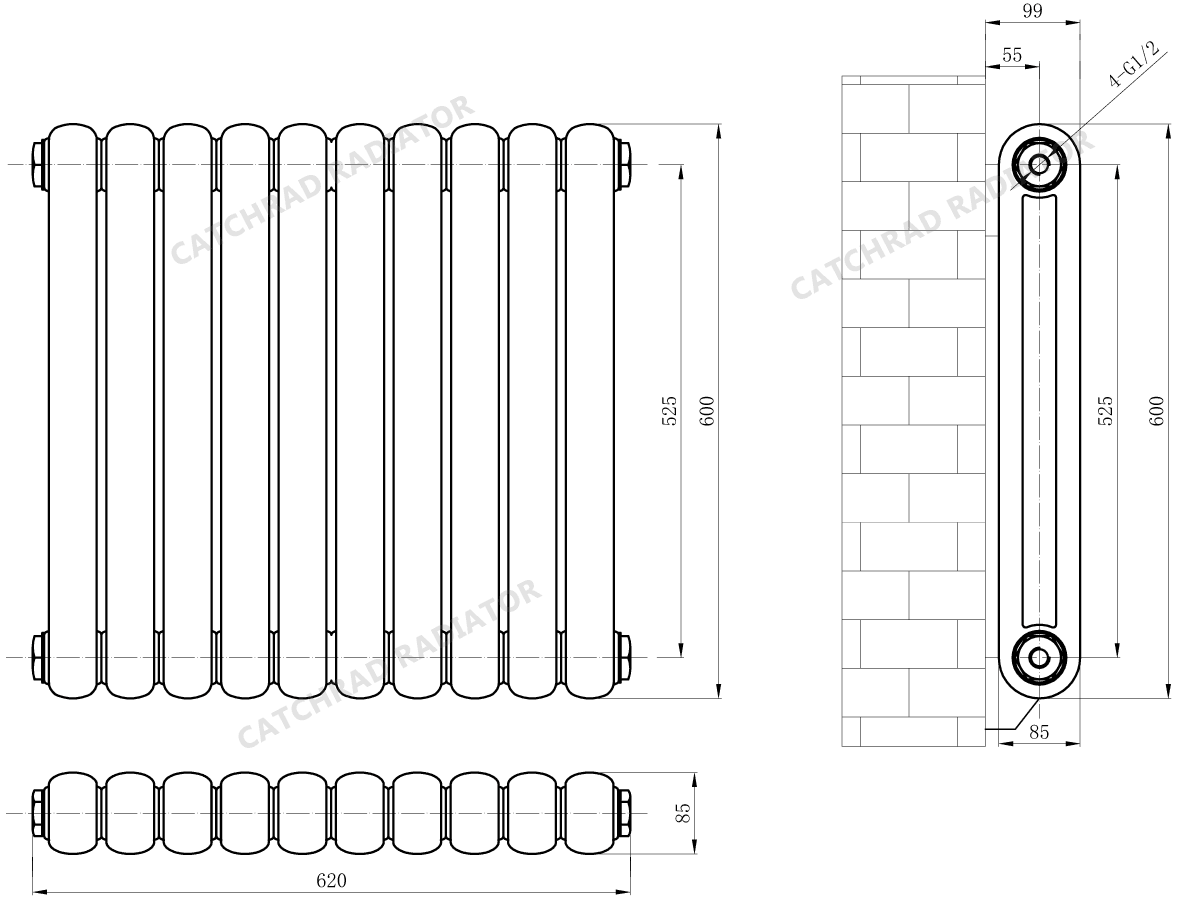

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
AR12-4/1500 1500 260 85 1425 55 99 4
AR12-6/1500 1500 380 85 1425 55 99 6
AR12-4/1800 1800 260 85 1725 55 99 4
AR12-6/1800 1800 380 85 1725 55 99 6
AR12-7/600 600 440 85 525 55 99 7
AR12-10/600 600 620 85 525 55 99 10
AR12-14/600 600 860 85 525 55 99 14
AR12-17/600 600 1040 85 525 55 99 17
AR12-20/600 600 1220 85 525 55 99 20
