BR12 Series

BR12 Series

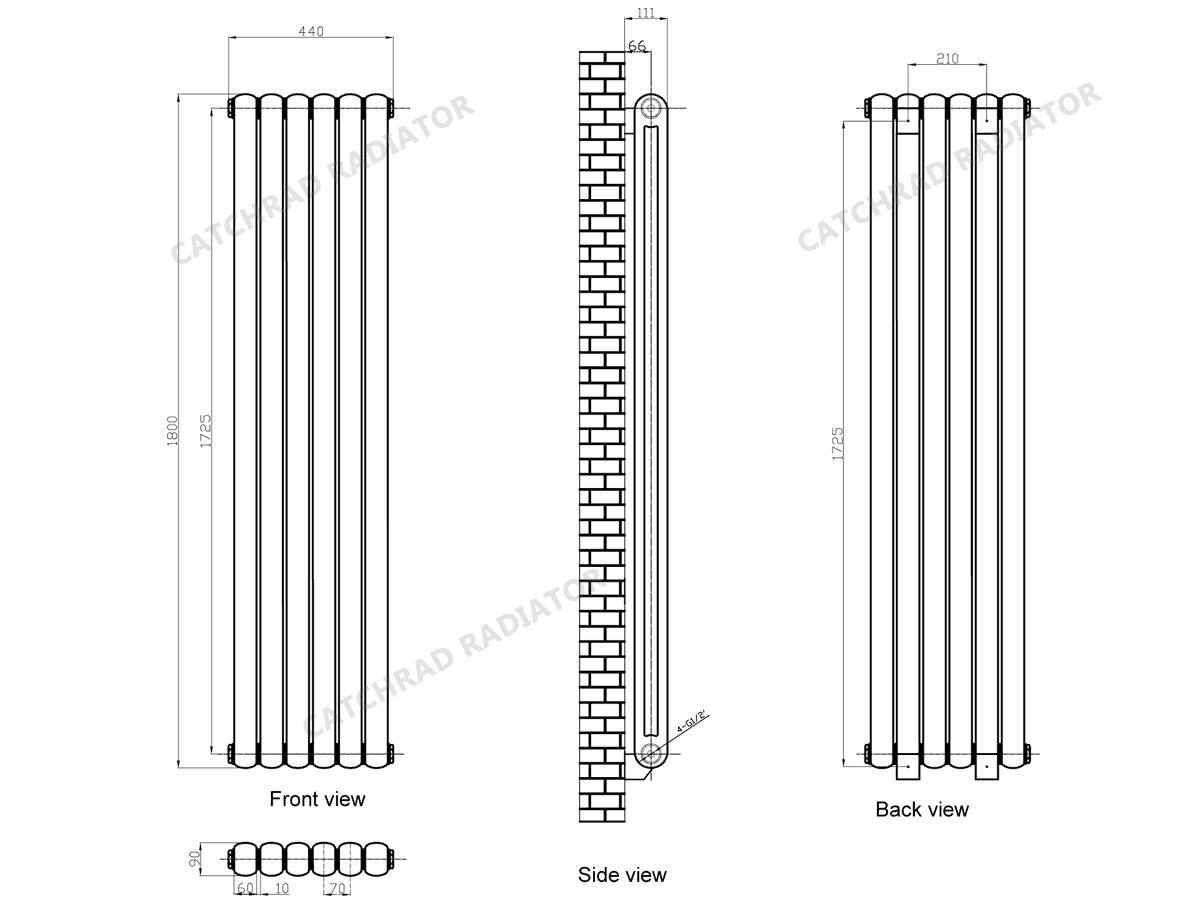

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
BR12-4/1800 1800 300 90 1725 66 111 4+4
BR12-6/1800 1800 440 90 1725 66 111 6+6
BR12-8/1800 1800 580 90 1725 66 111 8+8
BR12-6/600 600 440 90 525 66 111 6+6
BR12-8/600 600 580 90 525 66 111 8+8
BR12-11/600 600 790 90 525 66 111 11+11
BR12-14/600 600 1000 90 525 66 111 14+14
BR12-17/600 600 1210 90 525 66 111 17+17
