AHR12 Series
AHR12 Series

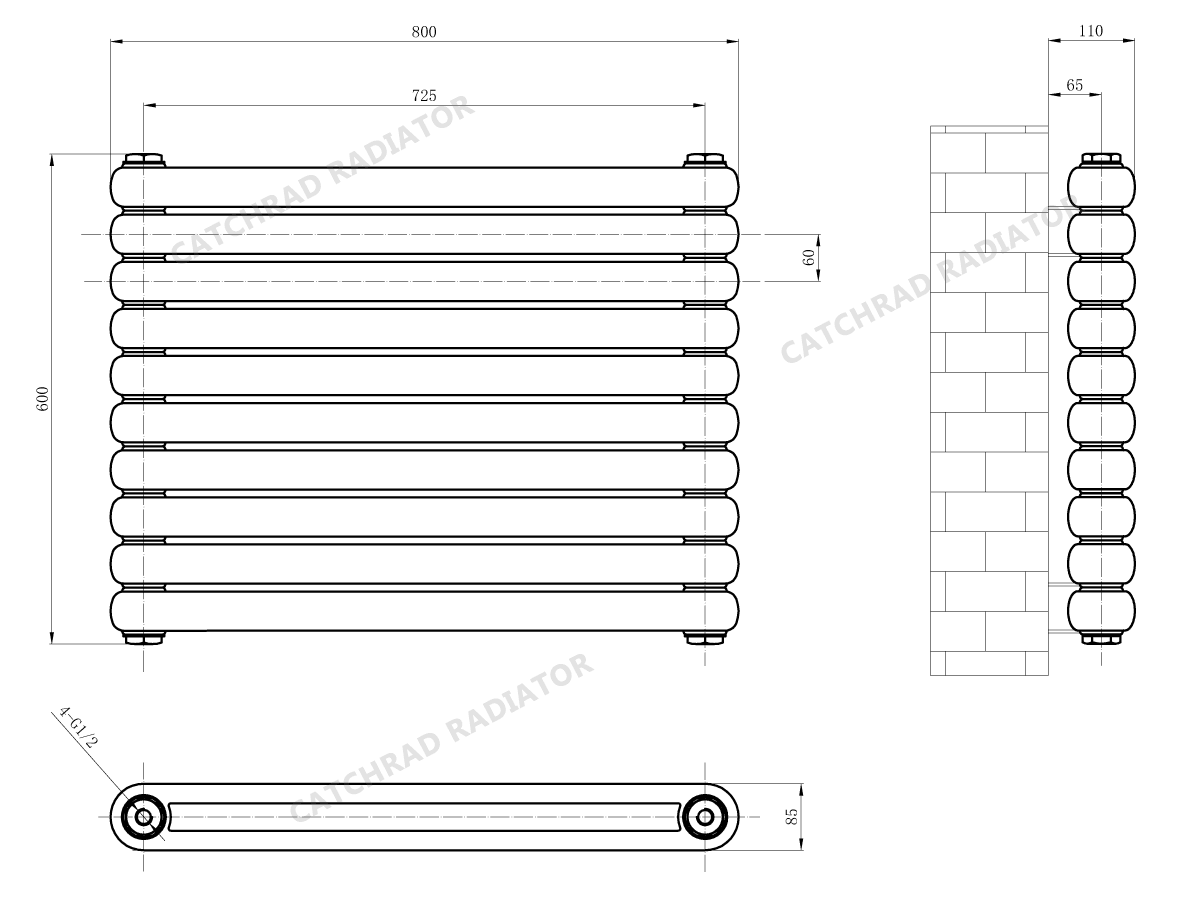

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| AHR12-10/800 | 600 | 800 | 85 | 725 | 65 | 110 | 10+10 |
| AHR12-10/1000 | 600 | 1000 | 85 | 925 | 65 | 110 | 10+10 |
| AHR12-10/1200 | 600 | 1200 | 85 | 1125 | 65 | 110 | 10+10 |
| AHR12-10/1400 | 600 | 1400 | 85 | 1325 | 65 | 110 | 10+10 |
| AHR12-10/1600 | 600 | 1600 | 85 | 1525 | 65 | 110 | 10+10 |
| AHR12-10/1800 | 600 | 1800 | 85 | 1725 | 65 | 110 | 10+10 |
