AHD12 Series

AHD12 Series

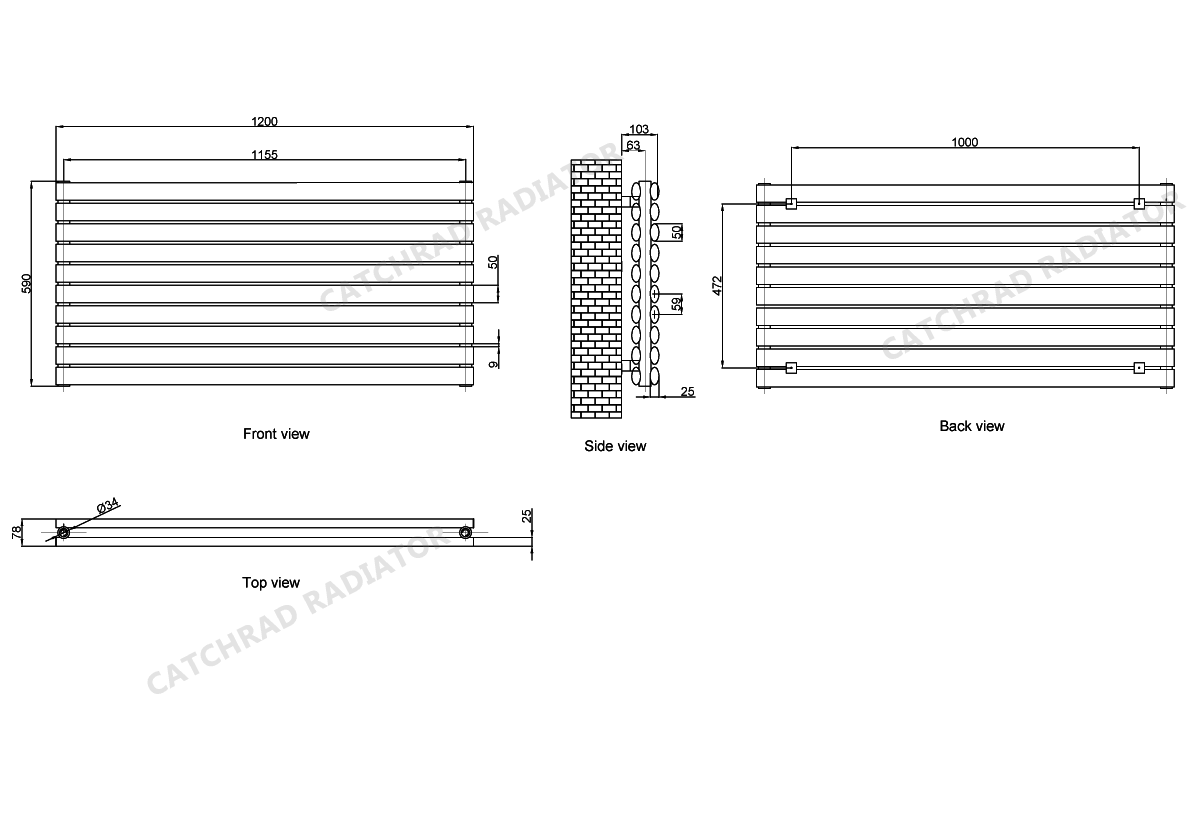

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
AHD12-10/800 590 800 78 755 63 103 10+10
AHD12-10/1000 590 1000 78 955 63 103 10+10
AHD12-10/1200 590 1200 78 1155 63 103 10+10
AHD12-10/1400 590 1400 78 1355 63 103 10+10
AHD12-10/1600 590 1600 78 1555 63 103 10+10
AHD12-10/1800 590 1800 78 1755 63 103 10+10
