AHD11 Series
AHD11 Series

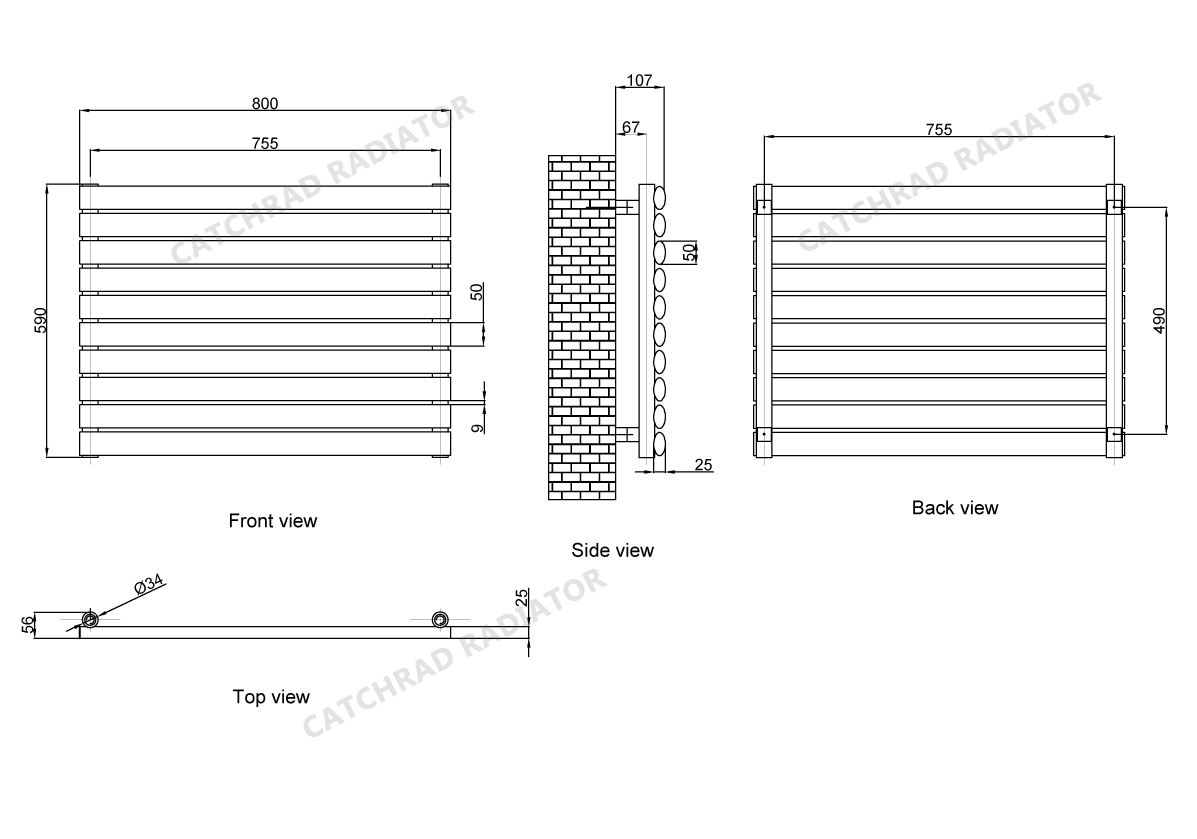

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| AHD11-10/800 | 590 | 800 | 56 | 755 | 67 | 107 | 10 |
| AHD11-10/1000 | 590 | 1000 | 56 | 955 | 67 | 107 | 10 |
| AHD11-10/1200 | 590 | 1200 | 56 | 1155 | 67 | 107 | 10 |
| AHD11-10/1400 | 590 | 1400 | 56 | 1355 | 67 | 107 | 10 |
| AHD11-10/1600 | 590 | 1600 | 56 | 1555 | 67 | 107 | 10 |
| AHD11-10/1800 | 590 | 1800 | 56 | 1755 | 67 | 107 | 10 |
