SLD Series
SLD Series

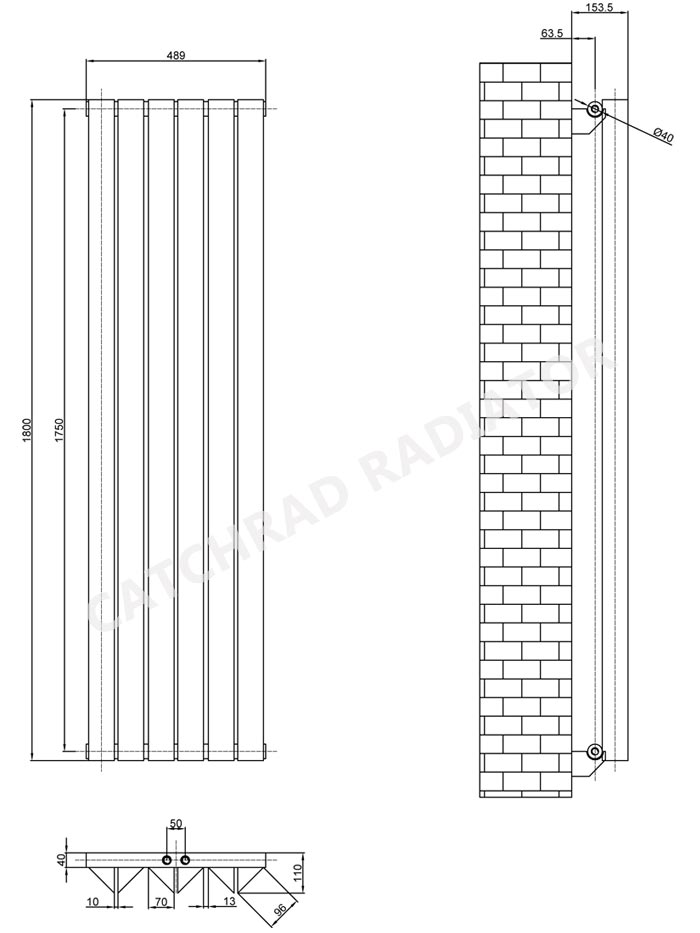

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| SLD11-4/1800 | 1800 | 326 | 110 | 1750 | 63.5 | 153.5 | 4 |
| SLD11-6/1800 | 1800 | 489 | 110 | 1750 | 63.5 | 153.5 | 6 |
| SLD11-8/1800 | 1800 | 652 | 110 | 1750 | 63.5 | 153.5 | 8 |
