ADJ12 Series
ADJ12 Series

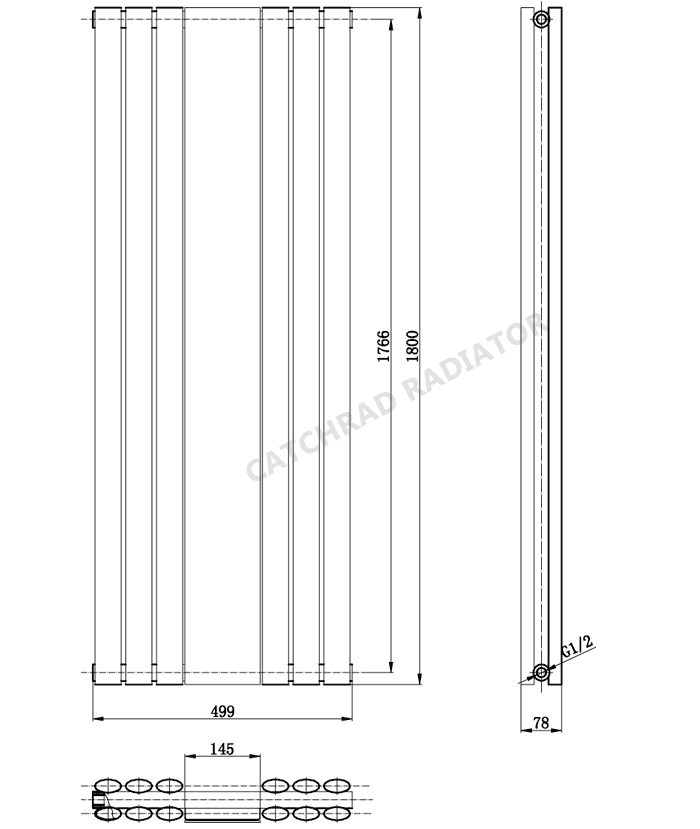

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| ADJ12-4/1800 | 1800 | 382 | 78 | 1755 | 63 | 103 | 4 |
| ADJ12-6/1800 | 1800 | 500 | 78 | 1755 | 63 | 103 | 6 |
| ADJ12-8/1800 | 1800 | 618 | 78 | 1755 | 63 | 103 | 8 |
