MID11 Series

MID11 Series

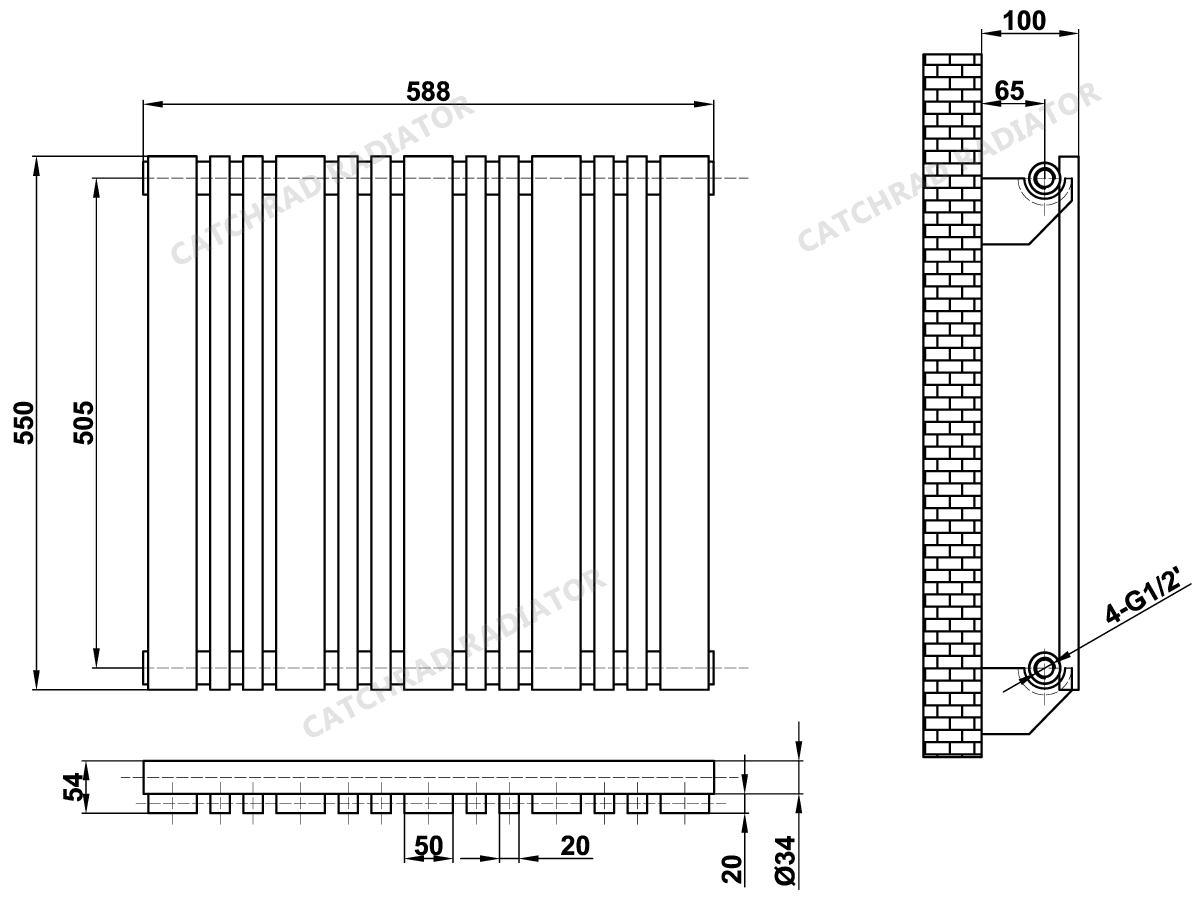

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
MID11-7/1800 1800 320 54 1755 65 100 7
MID11-10/1800 1800 456 54 1755 65 100 10
MID11-10/550 550 456 54 505 65 100 10
MID11-13/550 550 588 54 505 65 100 13
MID11-19/550 550 852 54 505 65 100 19
MID11-22/550 550 984 54 505 65 100 22
MID11-28/550 550 1284 54 505 65 100 28
