AD31 Series
AD31 Series

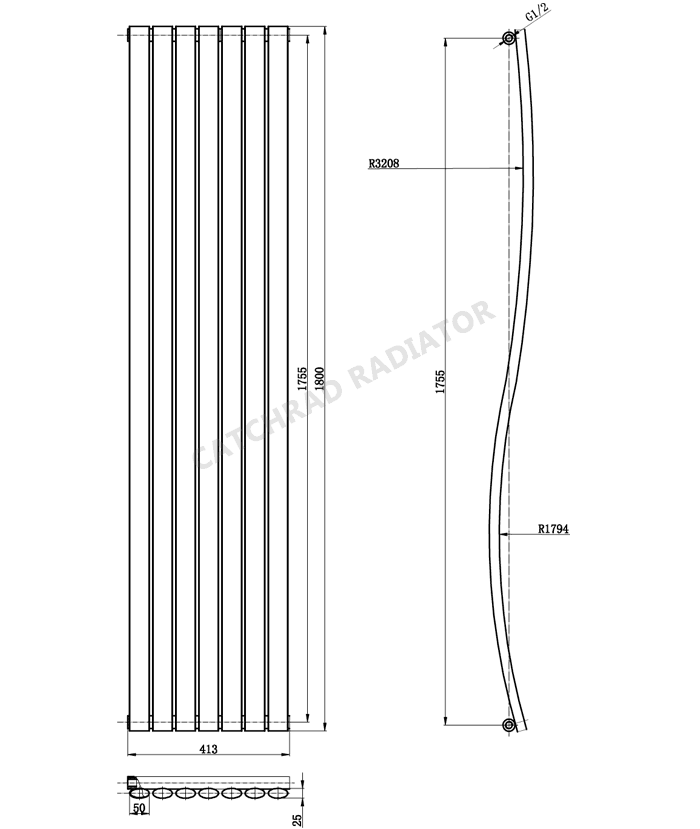

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| AD31-5/1800 | 1800 | 295 | 56 | 1755 | 63 | 103 | 5 |
| AD31-6/1800 | 1800 | 354 | 56 | 1755 | 63 | 103 | 6 |
| AD31-7/1800 | 1800 | 413 | 56 | 1755 | 63 | 103 | 7 |
| AD31-8/1800 | 1800 | 472 | 56 | 1755 | 63 | 103 | 8 |
