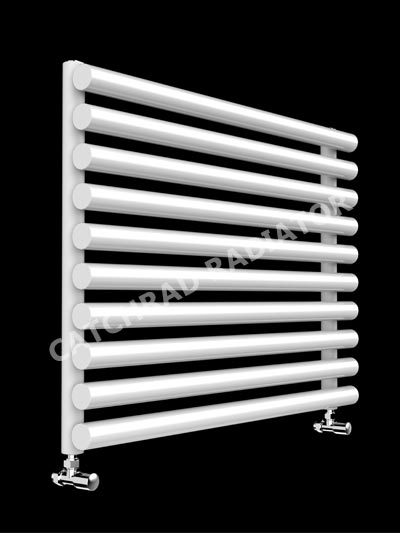

GHD11 Series
GHD11 Series

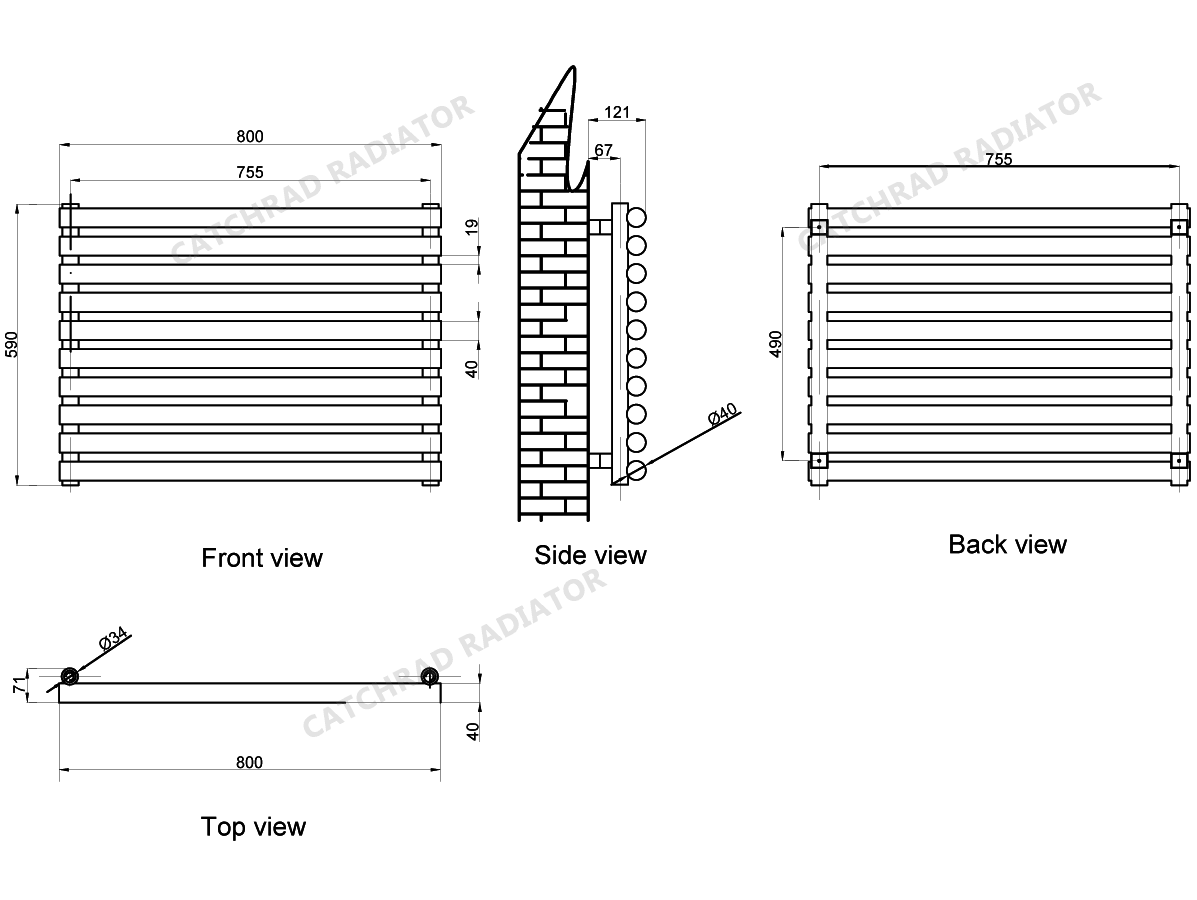

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| GHD11-10/600 | 590 | 600 | 71 | 555 | 67 | 121 | 10 |
| GHD11-10/800 | 590 | 800 | 71 | 755 | 67 | 121 | 10 |
| GHD11-10/1000 | 590 | 1000 | 71 | 955 | 67 | 121 | 10 |
| GHD11-10/1200 | 590 | 1200 | 71 | 1155 | 67 | 121 | 10 |
| GHD11-10/1400 | 590 | 1400 | 71 | 1355 | 67 | 121 | 10 |
