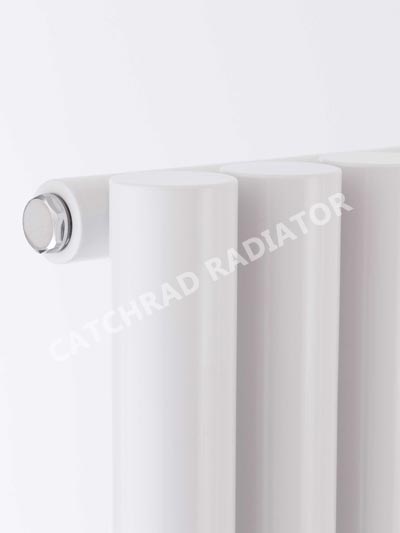

GD11 Series
GD11 Series

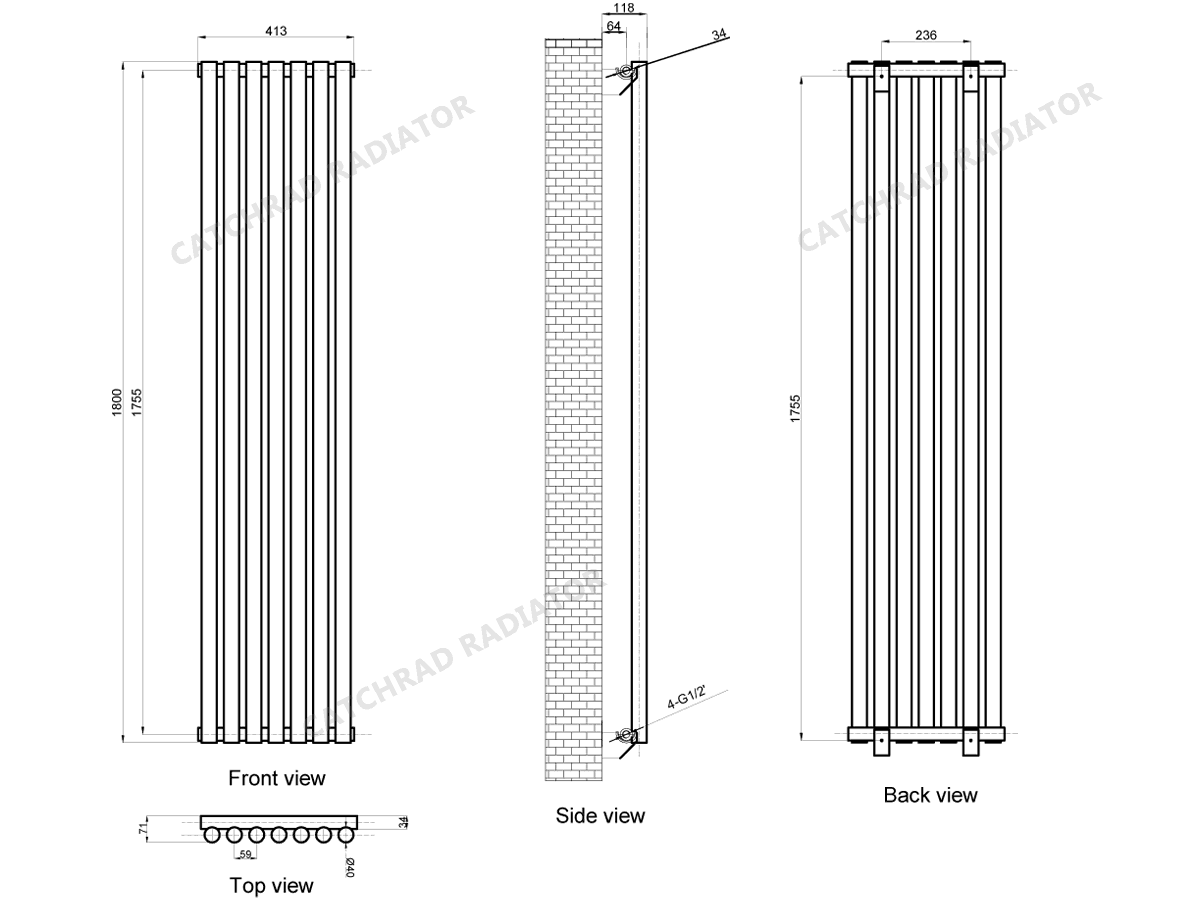

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| GD11-5/1500 | 1500 | 295 | 71 | 1455 | 64 | 118 | 5 |
| GD11-7/1500 | 1500 | 413 | 71 | 1455 | 64 | 118 | 7 |
| GD11-9/1500 | 1500 | 531 | 71 | 1455 | 64 | 118 | 9 |
| GD11-5/1800 | 1800 | 295 | 71 | 1755 | 64 | 118 | 5 |
| GD11-7/1800 | 1800 | 413 | 71 | 1755 | 64 | 118 | 7 |
| GD11-9/1800 | 1800 | 531 | 71 | 1755 | 64 | 118 | 9 |
