WP11 Series

WP11 Series

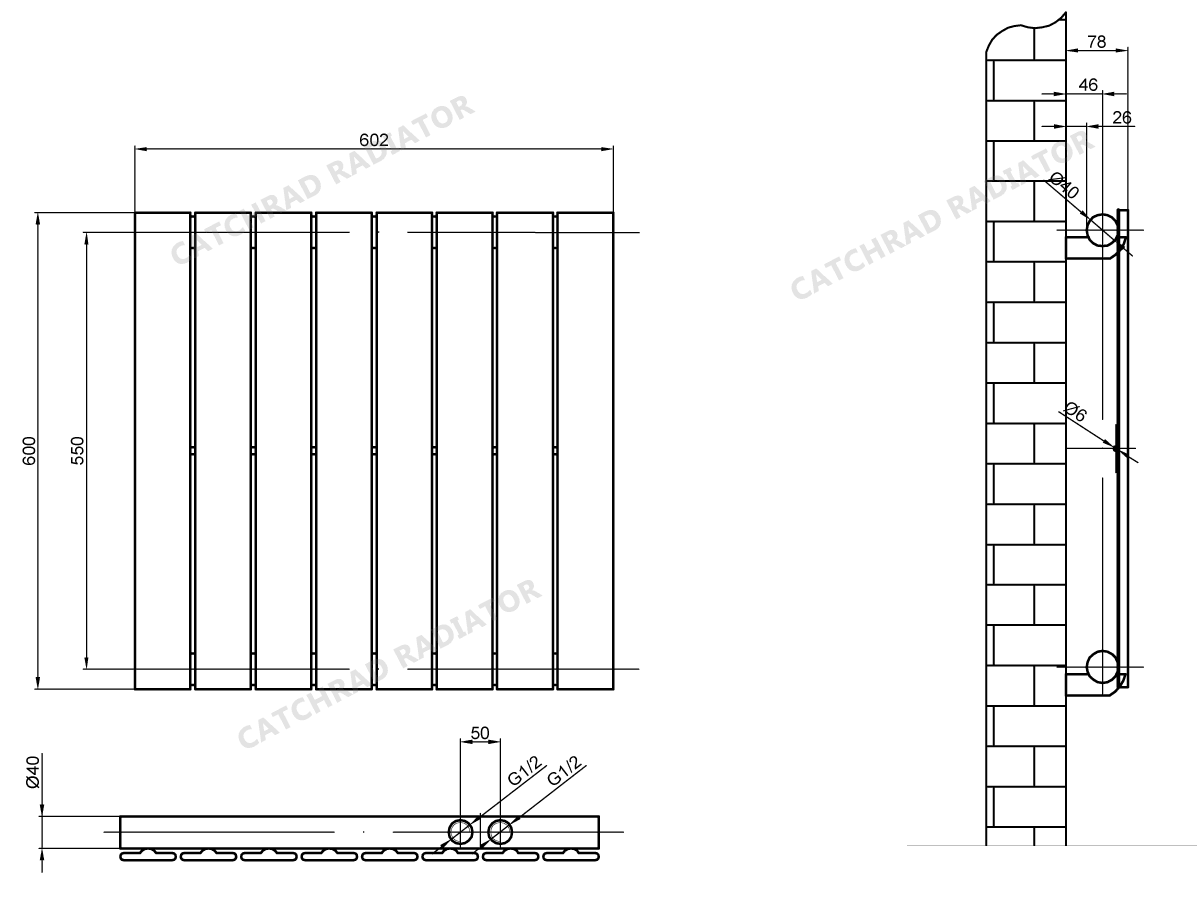

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
WP11-4/1600 1600 298 54 1550 46 78 4
WP11-6/1600 1600 450 54 1550 46 78 6
WP11-4/1800 1800 298 54 1750 46 78 4
WP11-6/1800 1800 450 54 1750 46 78 6
WP11-8/600 600 602 54 550 46 78 8
WP11-13/600 600 982 54 550 46 78 13
WP11-16/600 600 1210 54 550 46 78 16
