WHD12 Series
WHD12 Series

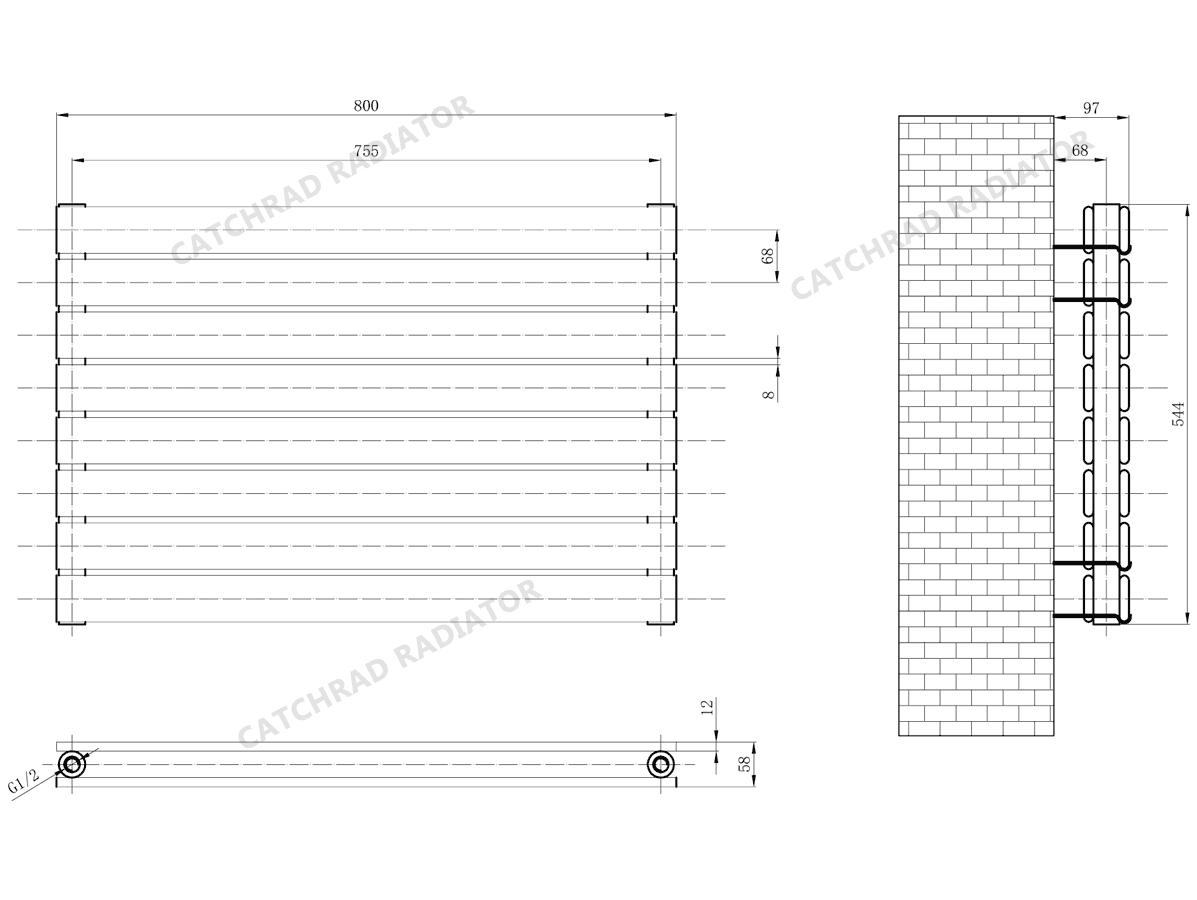

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| WHD12-8/800 | 544 | 800 | 58 | 755 | 68 | 97 | 8+8 |
| WHD11-8/1000 | 544 | 1000 | 58 | 955 | 68 | 97 | 8+8 |
| WHD11-8/1200 | 544 | 1200 | 58 | 1155 | 68 | 97 | 8+8 |
| WHD11-8/1400 | 544 | 1400 | 58 | 1355 | 68 | 97 | 8+8 |
| WHD11-8/1600 | 544 | 1600 | 58 | 1555 | 68 | 97 | 8+8 |
| WHD11-8/1800 | 544 | 1800 | 58 | 1755 | 68 | 97 | 8+8 |
