WHD11 Series

WHD11 Series

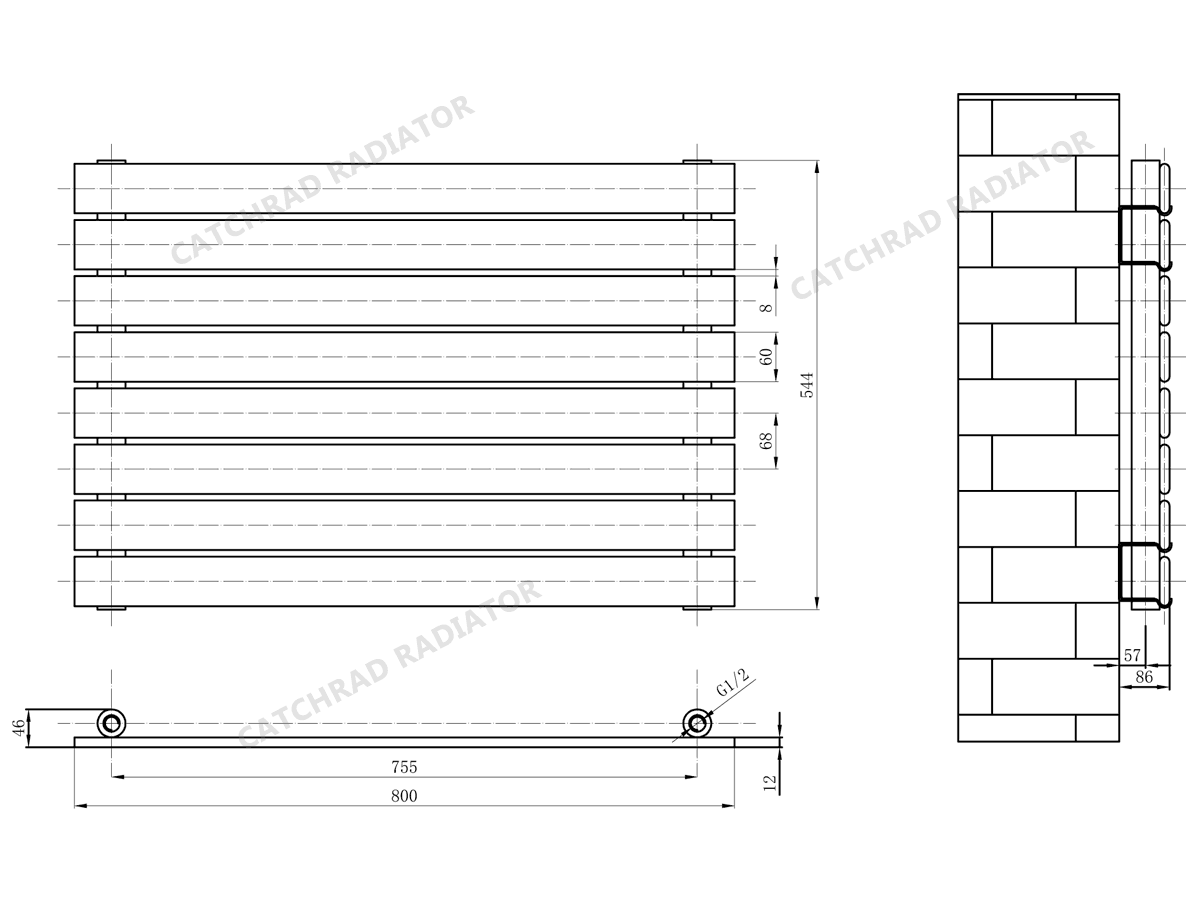

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
WHD11-8/800 544 800 46 755 57 86 8
WHD11-8/1000 544 1000 46 955 57 86 8
WHD11-8/1200 544 1200 46 1155 57 86 8
WHD11-8/1400 544 1400 46 1355 57 86 8
WHD11-8/1600 544 1600 46 1555 57 86 8
WHD11-8/1800 544 1800 46 1755 57 86 8
