WD12 Series
WD12 Series

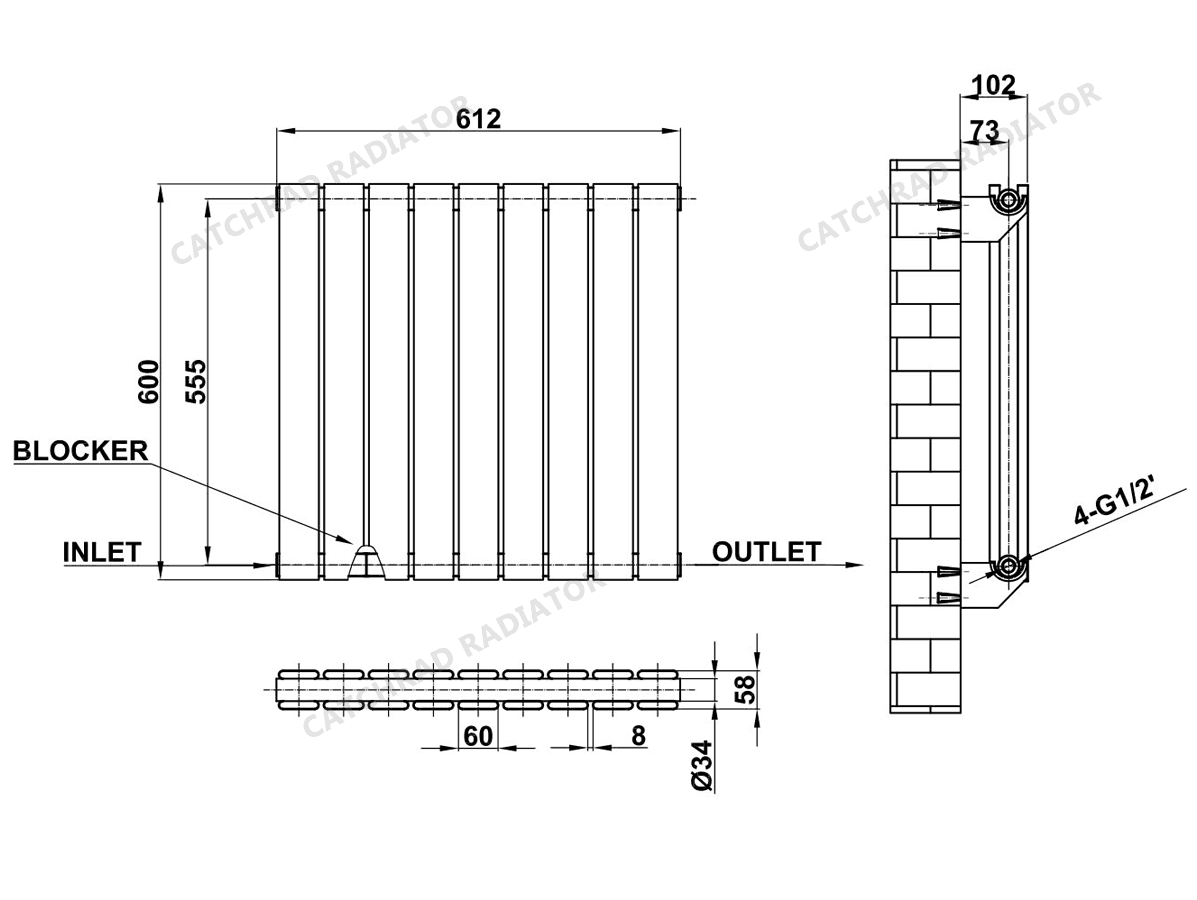

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| WD12-4/1600 | 1600 | 272 | 58 | 1555 | 73 | 102 | 4+4 |
| WD12-6/1600 | 1600 | 408 | 58 | 1555 | 73 | 102 | 6+6 |
| WD12-4/1800 | 1800 | 272 | 58 | 1755 | 73 | 102 | 4+4 |
| WD12-6/1800 | 1800 | 408 | 58 | 1755 | 73 | 102 | 6+6 |
| WD12-9/600 | 600 | 612 | 58 | 555 | 73 | 102 | 9+9 |
| WD12-11/600 | 600 | 748 | 58 | 555 | 73 | 102 | 11+11 |
| WD12-13/600 | 600 | 884 | 58 | 555 | 73 | 102 | 13+13 |
| WD12-15/600 | 600 | 1020 | 58 | 555 | 73 | 102 | 15+15 |
| WD12-17/600 | 600 | 1156 | 58 | 555 | 73 | 102 | 17+17 |
