WD11 Series
WD11 Series

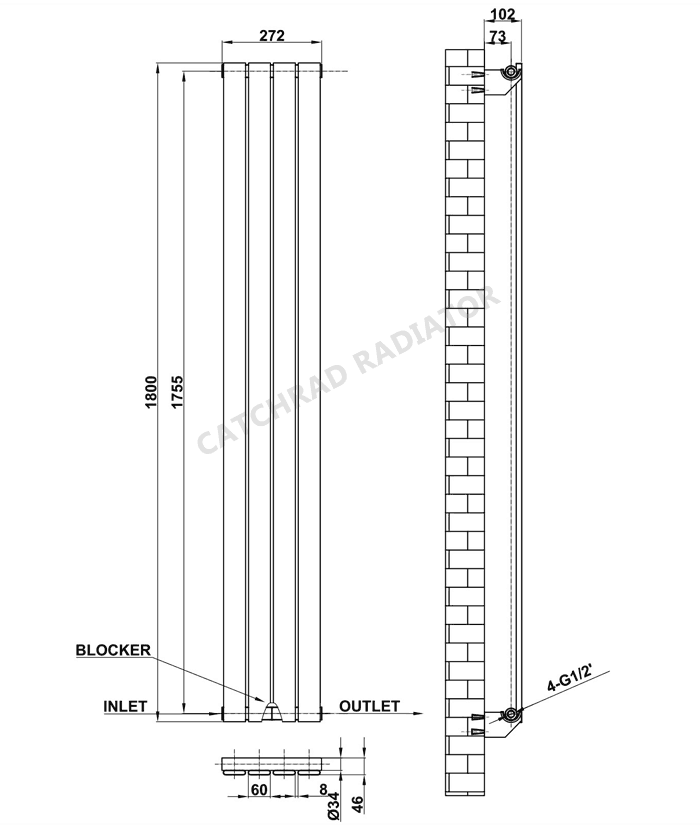

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| WD11-4/1600 | 1600 | 272 | 46 | 1555 | 73 | 102 | 4 |
| WD11-6/1600 | 1600 | 408 | 46 | 1555 | 73 | 102 | 6 |
| WD11-4/1800 | 1800 | 272 | 46 | 1755 | 73 | 102 | 4 |
| WD11-6/1800 | 1800 | 408 | 46 | 1755 | 73 | 102 | 6 |
| WD11-9/600 | 600 | 612 | 46 | 555 | 73 | 102 | 9 |
| WD11-11/600 | 600 | 748 | 46 | 555 | 73 | 102 | 11 |
| WD11-13/600 | 600 | 884 | 46 | 555 | 73 | 102 | 13 |
| WD11-15/600 | 600 | 1020 | 46 | 555 | 73 | 102 | 15 |
| WD11-17/600 | 600 | 1156 | 46 | 555 | 73 | 102 | 17 |
