WB12 Series

WB12 Series

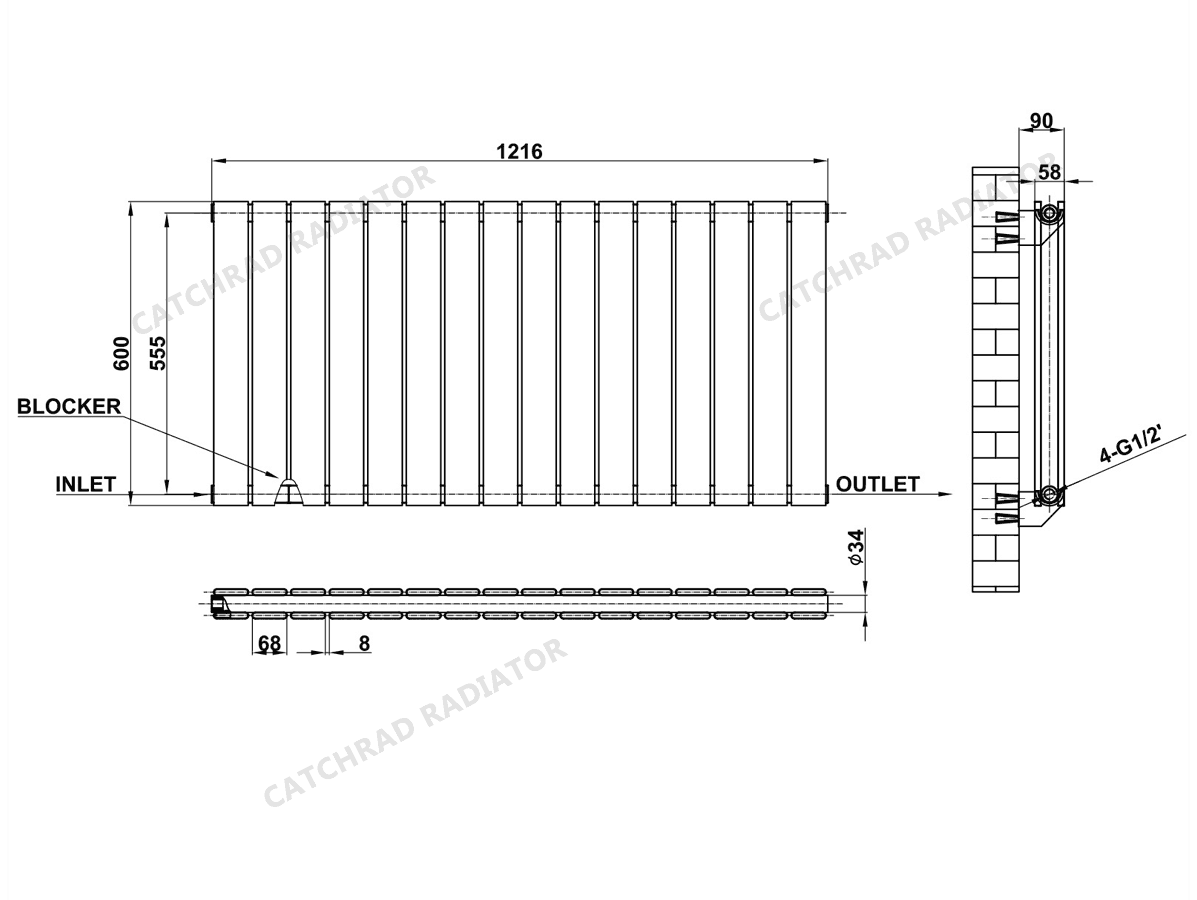

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
WB12-4/1600 1600 304 58 1555 64 90 4+4
WB12-6/1600 1600 456 58 1555 64 90 6+6
WB12-4/1800 1800 304 58 1755 64 90 4+4
WB12-6/1800 1800 456 58 1755 64 90 6+6
WB12-6/600 600 456 58 555 64 90 6+6
WB12-8/600 600 608 58 555 64 90 8+8
WB12-11/600 600 836 58 555 64 90 11+11
WB12-14/600 600 1064 58 555 64 90 14+14
WB12-17/600 600 1292 58 555 64 90 17+17
