JD12 Series

JD12 Series

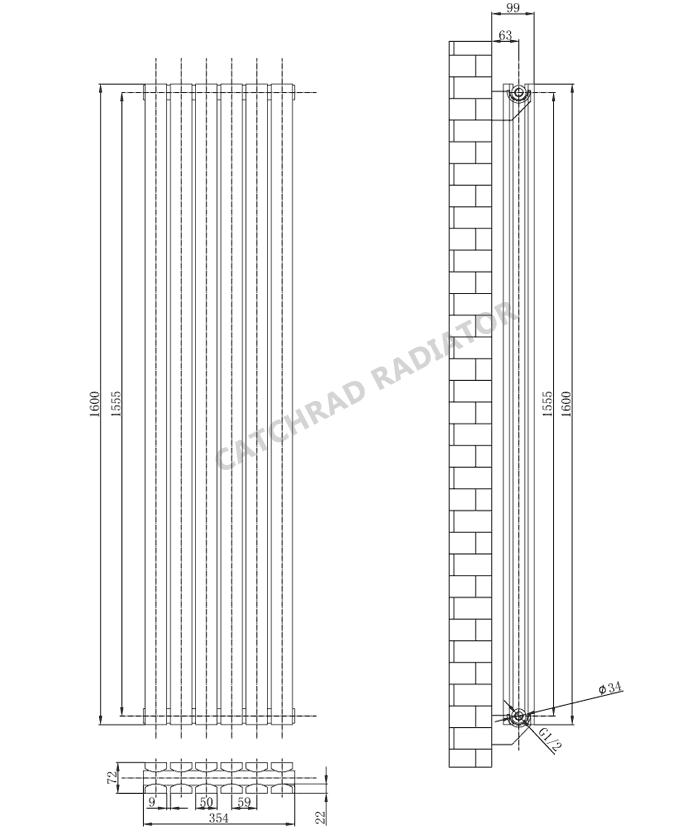

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
JD12-4/1600 1600 236 72 1555 63 99 4+4
JD12-6/1600 1600 354 72 1555 63 99 6+6
JD12-4/1800 1800 236 72 1755 63 99 4+4
JD12-6/1800 1800 354 72 1755 63 99 6+6
JD12-7/600 600 413 72 555 63 99 7+7
JD12-10/600 600 590 72 555 63 99 10+10
JD12-14/600 600 826 72 555 63 99 14+14
JD12-17/600 600 1003 72 555 63 99 17+17
JD12-20/600 600 1180 72 555 63 99 20+20
