JD11 Series
JD11 Series

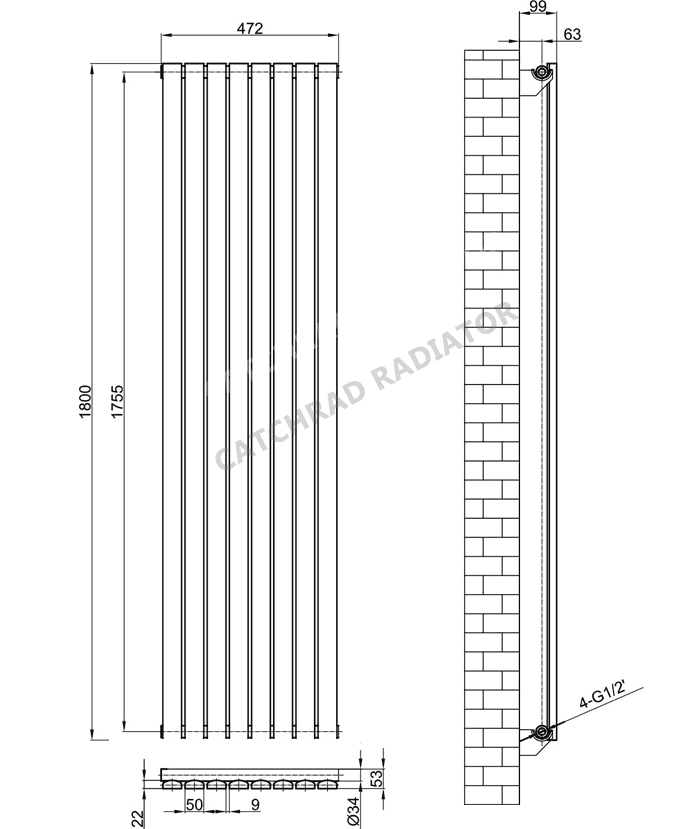

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| JD11-4/1600 | 1600 | 236 | 53 | 1555 | 63 | 99 | 4 |
| JD11-6/1600 | 1600 | 354 | 53 | 1555 | 63 | 99 | 6 |
| JD11-4/1800 | 1800 | 236 | 53 | 1755 | 63 | 99 | 4 |
| JD11-6/1800 | 1800 | 354 | 53 | 1755 | 63 | 99 | 6 |
| JD11-7/600 | 600 | 413 | 53 | 555 | 63 | 99 | 7 |
| JD11-10/600 | 600 | 590 | 53 | 555 | 63 | 99 | 10 |
| JD11-14/600 | 600 | 826 | 53 | 555 | 63 | 99 | 14 |
| JD11-17/600 | 600 | 1003 | 53 | 555 | 63 | 99 | 17 |
| JD11-20/600 | 600 | 1180 | 53 | 555 | 63 | 99 | 20 |
