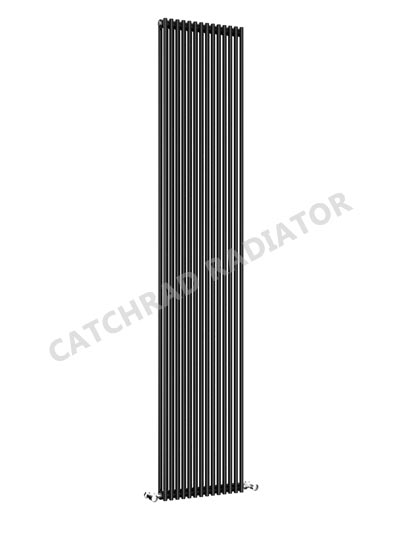

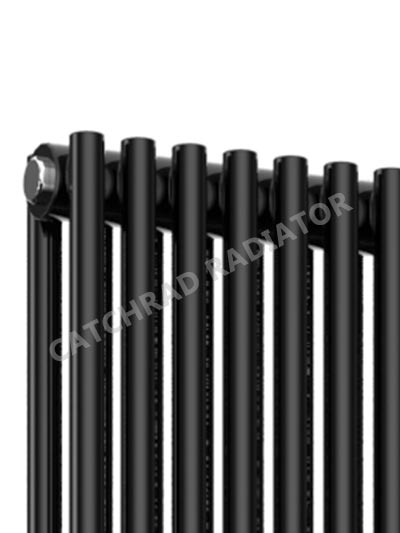

HD12 Series
HD12 Series

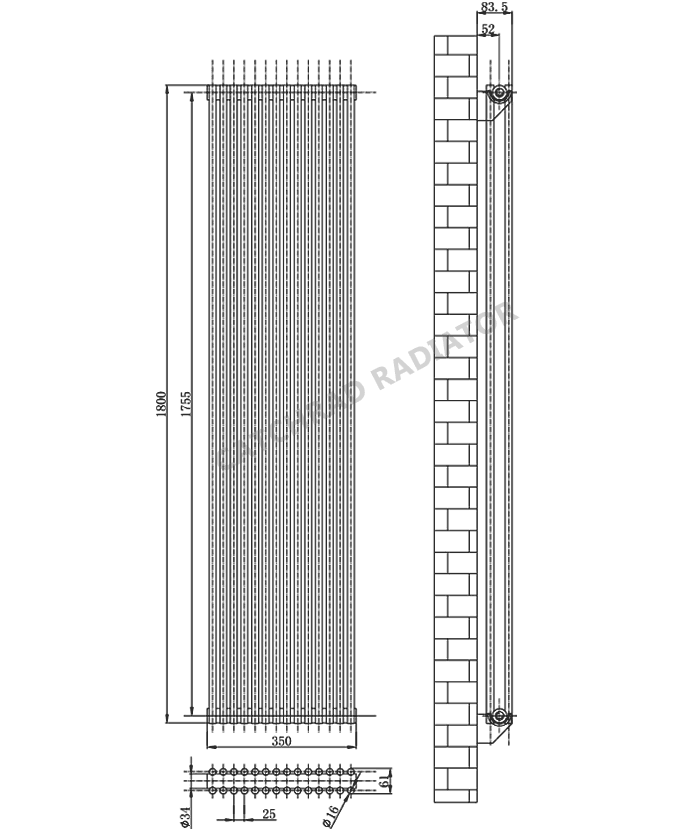

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| HD12-12/1800 | 1800 | 300 | 61 | 1755 | 52 | 83.5 | 12+12 |
| HD12-14/1800 | 1800 | 350 | 61 | 1755 | 52 | 83.5 | 14+14 |
| HD12-16/1800 | 1800 | 400 | 61 | 1755 | 52 | 83.5 | 16+16 |
| HD12-18/1800 | 1800 | 450 | 61 | 1755 | 52 | 83.5 | 18+18 |
