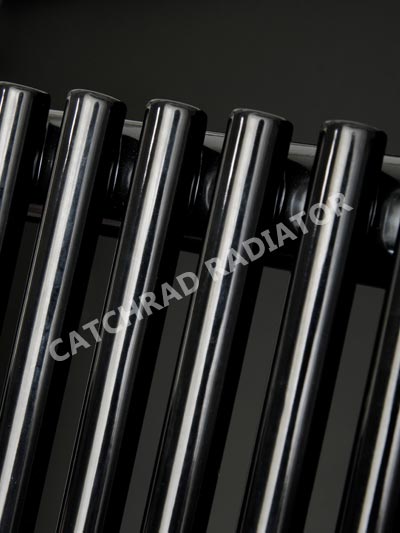

HD11 Series
HD11 Series

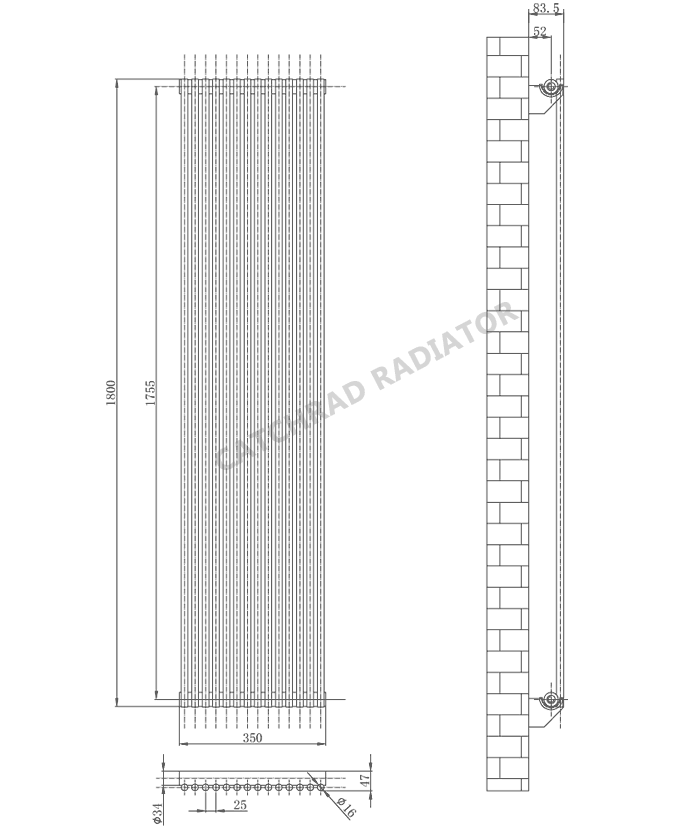

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| HD11-12/1800 | 1800 | 300 | 47 | 1755 | 52 | 83.5 | 12 |
| HD11-14/1800 | 1800 | 350 | 47 | 1755 | 52 | 83.5 | 14 |
| HD11-16/1800 | 1800 | 400 | 47 | 1755 | 52 | 83.5 | 16 |
| HD11-18/1800 | 1800 | 450 | 47 | 1755 | 52 | 83.5 | 18 |
