BD11 Series
BD11 Series

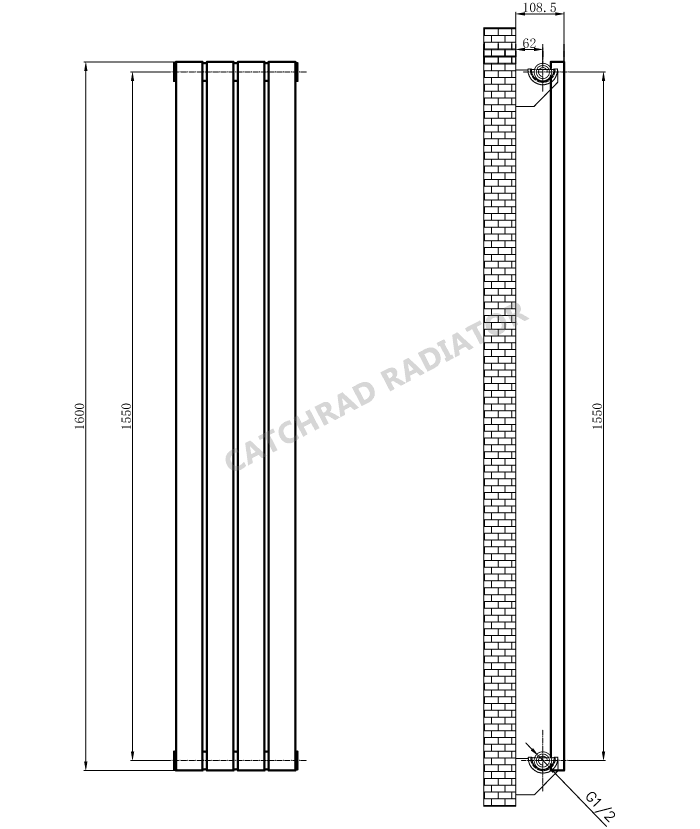

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| BD11-4/1600 | 1600 | 280 | 66 | 1550 | 62 | 108.5 | 4 |
| BD11-5/1600 | 1600 | 350 | 66 | 1550 | 62 | 108.5 | 5 |
| BD11-6/1600 | 1600 | 420 | 66 | 1550 | 62 | 108.5 | 6 |
| BD11-4/1800 | 1800 | 280 | 66 | 1750 | 62 | 108.5 | 4 |
| BD11-5/1800 | 1800 | 350 | 66 | 1750 | 62 | 108.5 | 5 |
| BD11-6/1800 | 1800 | 420 | 66 | 1750 | 62 | 108.5 | 6 |
| BD11-9/600 | 600 | 630 | 66 | 550 | 62 | 108.5 | 9 |
| BD11-18/600 | 600 | 1260 | 66 | 550 | 62 | 108.5 | 18 |
