4 Column Radiator

4 Column Radiator

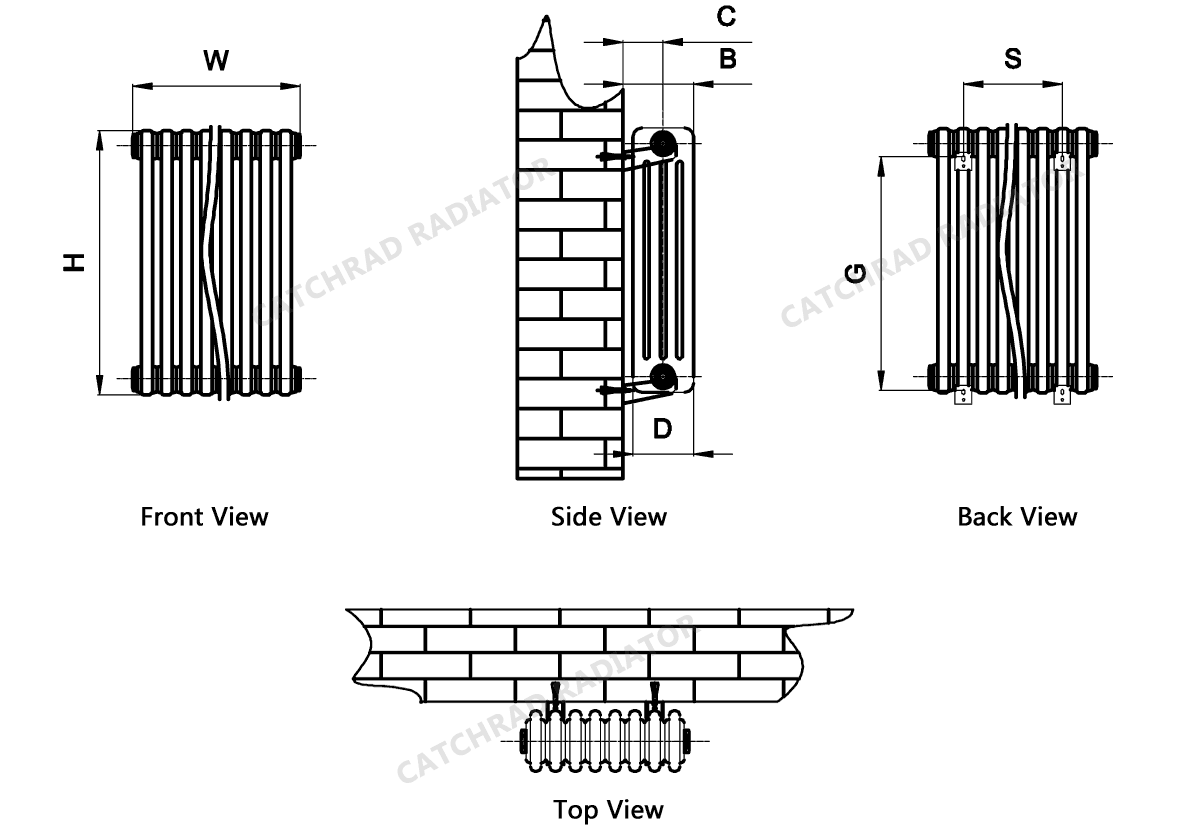

Product Name Height
mm		 Width
mm		 Thickness
mm		 Plumbing Axes Center to center
mm		 Wall to Pipe center
mm		 Wall Distance
mm		 Tube Quantity
H W D C - -
DP14-13/600 600 605 140 525 95 160 13
DP14-17/600 600 785 140 525 95 160 17
DP14-22/600 600 1010 140 525 95 160 22
DP14-26/600 600 1190 140 525 95 160 26
DP14-30/600 600 1370 140 525 95 160 30
DP14-22/300 300 1010 140 225 95 160 22
DP14-26/300 300 1190 140 225 95 160 26
DP14-30/300 300 1370 140 225 95 160 30
