2 Column Radiator
2 Column Radiator

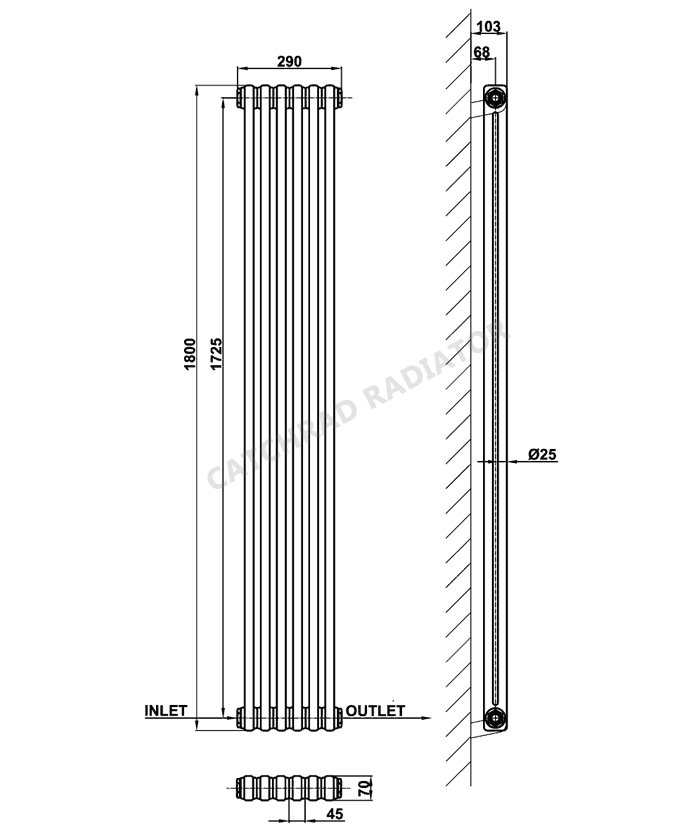

| Product Name | Height mm |
Width mm |
Thickness mm |
Plumbing Axes Center to center mm |
Wall to Pipe center mm |
Wall Distance mm |
Tube Quantity |
|---|---|---|---|---|---|---|---|
| H | W | D | C | - | - | ||
| DP12-4/1500 | 1500 | 200 | 70 | 1425 | 68 | 103 | 4 |
| DP12-6/1500 | 1500 | 290 | 70 | 1425 | 68 | 103 | 6 |
| DP12-4/1800 | 1800 | 200 | 70 | 1725 | 68 | 103 | 4 |
| DP12-6/1800 | 1800 | 290 | 70 | 1725 | 68 | 103 | 6 |
| DP12-13/600 | 600 | 605 | 70 | 525 | 68 | 103 | 13 |
| DP12-17/600 | 600 | 785 | 70 | 525 | 68 | 103 | 17 |
| DP12-22/300 | 300 | 1010 | 70 | 225 | 68 | 103 | 22 |
| DP12-26/300 | 300 | 1190 | 70 | 225 | 68 | 103 | 26 |
| DP12-30/300 | 300 | 1370 | 70 | 225 | 68 | 103 | 30 |
